Hyundai Venue: Front Hub / Knuckle / Repair procedures
| 1. |
Loosen the wheel nuts slightly.
Raise the vehicle, and make sure it is securely supported.
|
| 2. |

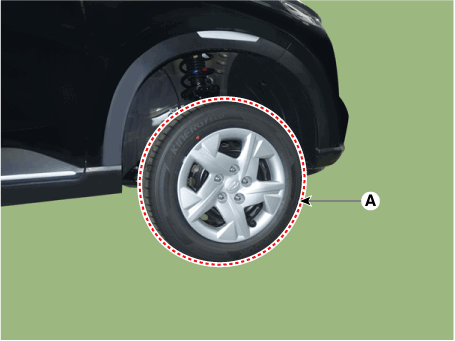

Remove the front wheel and tire (A) from front hub.
|
Tightening torque :
107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb-ft)
|
| •
|
Be careful not to damage the hub bolts when removing
the front wheel and tire (A).
|
|
|
| 3. |
Remove the front brake caliper.
(Refer to Brake System - "Front Disc Brake")
|
| 4. |

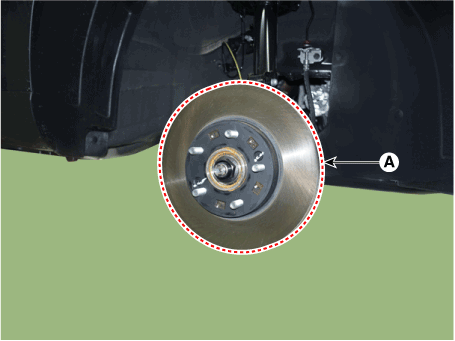

Loosen the screw and then remove the front disc (A).
|
Tightening torque :
4.9 - 5.9 N.m (0.5 - 0.6 kgf.m, 3.6 - 4.3 lb-ft)
|
|
| 5. |

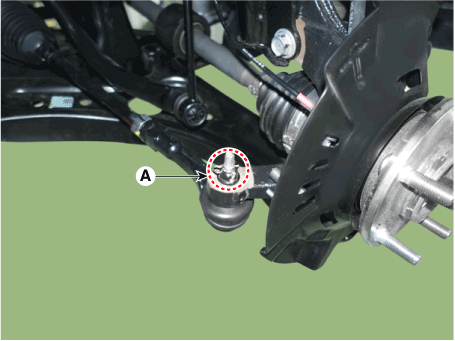

Remove the tie rod end ball joint.
| (1) |
Remove the split pin and nut (A).
|
| (2) |

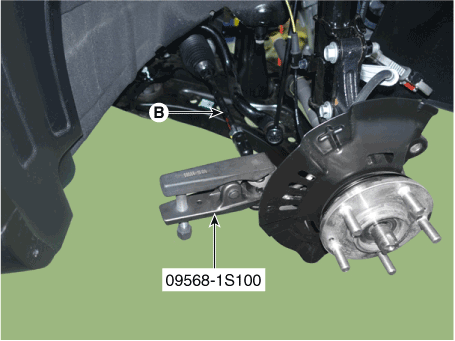

Using SST(09568-1S100), separate the ball joint (B) from the
knuckle.
|
|
Tightening torque:
34.3 - 44.1 N.m (3.5 - 4.5 kgf.m, 25.3 - 32.5 lb-ft)
|
|
| 6. |

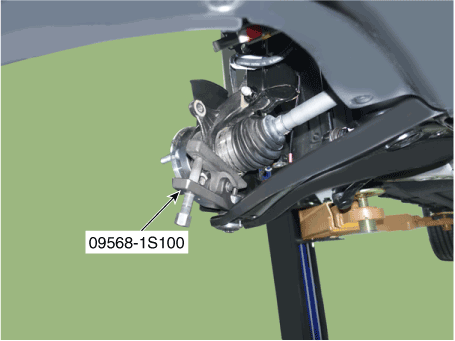

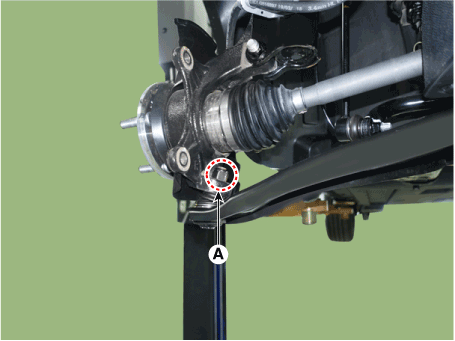

Loosen the lower arm nut (A) and then remove the lower arm ball joint
by using SST(09568-1S100).
|
Tightening torque :
68.6 - 80.4 N.m (7.0 - 8.2 kgf.m, 50.6 - 59.3 lb-ft)
|
|
| 7. |

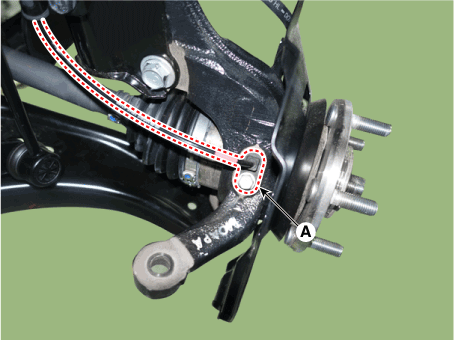

Loosen the bolt and then remove the wheel speed sensor (A).
|
Tightening torque :
7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.5 - 8.7 lb-ft)
|
|
| 8. |

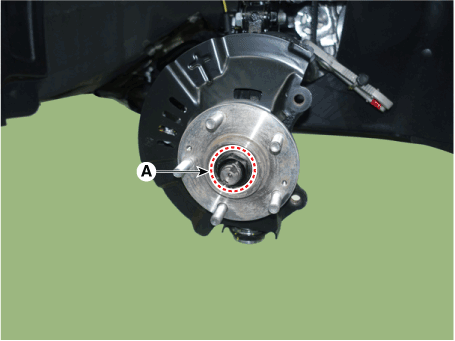

Loosen the driveshaft caulking nut (A).
|
Tightening torque :
274.6 - 294.2 N.m (28.0 - 30.0 kgf.m, 202.5 - 217.0 lb-ft)
|
| •
|
The driveshaft lock nut (A) should be replaced with
new ones.
|
| •
|

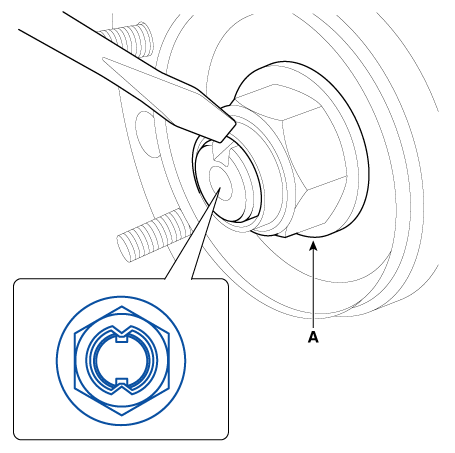

After installation driveshaft lock nut, stake the lock
nut using a chisel and hammer as shown in the illustration
below
|
Caulking depth : 1.5 mm (0.591 in.)
|
|
|
|
| 9. |
Loosen the strut mounting bolts, nuts and then remove the knuckle assembly
(A).
|
Tightening torque :
98.1 - 117.7 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.8 lb-ft)
|
|
| 1. |

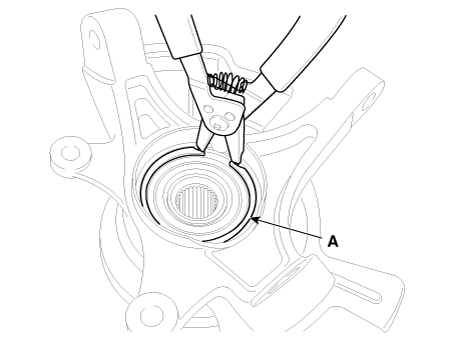

Remove the snap ring (A).
|
| 2. |

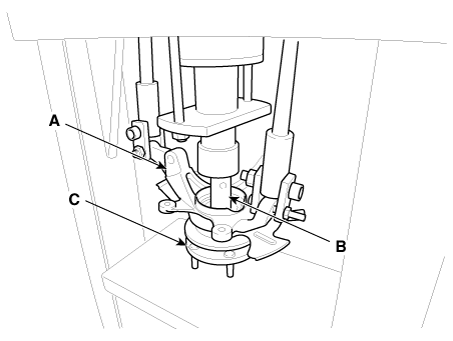

Remove the hub assembly from the knuckle assembly.
| (1) |
Install the front knuckle assembly (A) on press.
|
| (2) |
Lay a suitable adapter (B) upon the hub assembly shaft.
|
| (3) |

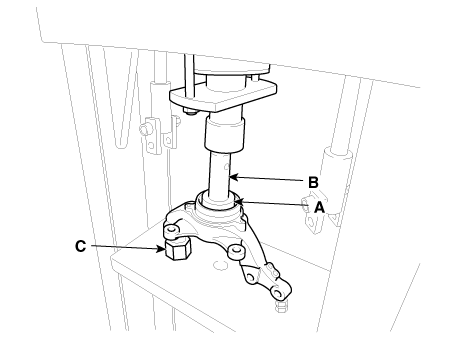

Remove the hub assembly (C) from the knuckle assembly (A) by
using press.
|
|
| 3. |

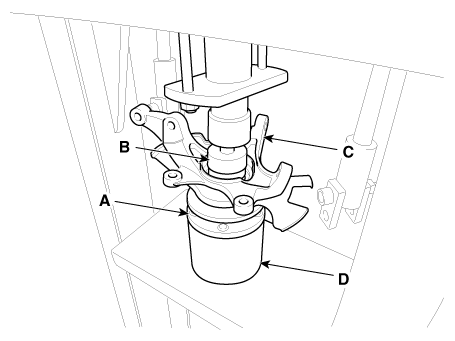

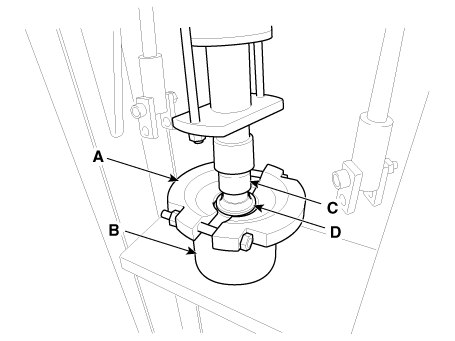

Remove the hub bearing inner race from the hub assembly.
| (1) |
Install a suitable tool (A) for removing the hub bearing inner
race on the hub assembly.
|
| (2) |
Lay the hub assembly and tool (A) upon a suitable adapter (B).
|
| (3) |
Lay a suitable adapter (C) upon the hub assembly shaft.
|
| (4) |
Remove the hub bearing inner race (D) from the hub assembly
by using press.
|
|
| 4. |

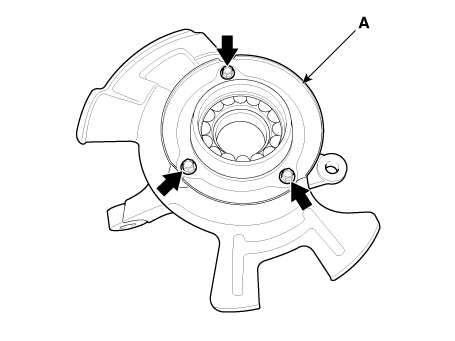

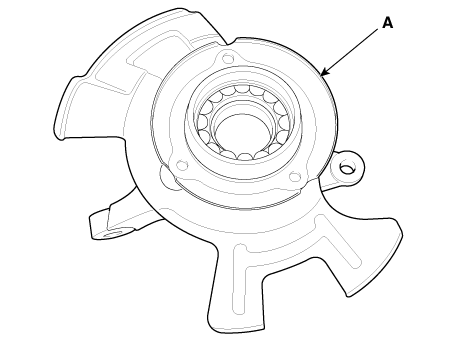

Remove the dust cover (A).
|
| 5. |
Remove the hub bearing outer race from the knuckle assembly.
| (1) |
Lay the hub assembly (A) upon a suitable adapter (B).
|
| (2) |
Lay a suitable adapter (C) upon the hub bearing outer race.
|
| (3) |
Remove the hub bearing outer race from the knuckle assembly
by using press.
|
|
| 6. |
Replace hub bearing with a new one.
|
| 1. |
Install the hub bearing to the knuckle assembly.
| (1) |
Lay the knuckle assembly (A) on press.
|
| (2) |
Lay a new hub bearing upon the knuckle assembly (A).
|
| (3) |
Lay a suitable adapter (B) upon the hub bearing.
|
| (4) |
Install the hub bearing to the knuckle assembly by using press.
|
• |
Do not press against the inner race of the hub
bearing because that can cause damage to the
bearing assembly.
|
|
• |
Always use a new wheel bearing assembly.
|
|
|
|
| 2. |
Install the dust cover (A).
|
| 3. |
Install the hub assembly to the knuckle assembly.
| (1) |
Lay the hub assembly (A) upon a suitable adapter (B).
|
| (2) |
Lay the knuckle assembly (C) upon the hub assembly (A).
|
| (3) |
Lay a suitable adapter (D) upon the hub bearing.
|
| (4) |
Install the hub assembly (A) to the knuckle assembly (C) by
using press.
|
• |
Do not press against the inner race of the hub
bearing because that can cause damage to the
bearing assembly.
|
|
|
|
| 4. |
Install the snap ring (A).
|
| 1. |
Check the hub for cracks and the splines for wear.
|
| 2. |
Check the brake disc for scoring and damage.
|
| 3. |
Check the knuckle for cracks.
|
| 4. |
Check the bearing for cracks or damage.
|
| 1. |
Install in the reverse order of removal.
|
| 2. |
Check the alignment.
(Refer to Suspension System - "Alingment")
|
