Hyundai Venue: Door Locks / Child-Protector Rear Door Locks

Hyundai Venue (QX) (2020-2024) Owners Manual / Convenient Features / Door Locks / Child-Protector Rear Door Locks

Hyundai Venue. Child-Protector Rear Door Locks

The child safety lock is provided to help prevent children seated in the rear from accidentally opening the rear doors. The rear door safety locks should be used whenever children are in the vehicle.

The child safety lock is located on the edge of each rear door. When the child safety lock is in the lock position, the rear door will not open if the inner door handle is pulled.

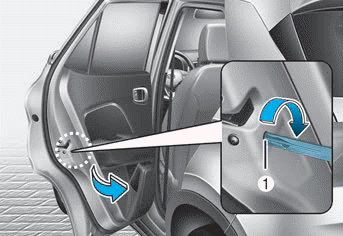

To lock the child safety lock, insert a small flat blade tool (like a screwdriver or similar) (1) into the slot and turn it to the lock position as shown.

To allow a rear door to be opened from inside the vehicle, unlock the child safety lock.

WARNING

If children accidently open the rear doors while the vehicle is in motion, they could fall out of the vehicle. The rear door safety locks should always be used whenever children are in the vehicle.

    Automatic Door Lock and Unlock Features

    Your vehicle is equipped with features that will automatically lock or unlock your vehicle based on settings you select in the LCD cluster display. Auto LOCK - Enable on Speed When this feature is set in the LCD cluster display, all the doors will be locked automatically when the vehicle exceeds 9 mph (15 kph)...

    Theft-Alarm System

    This system helps to protect your vehicle and valuables. The horn will sound and the hazard warning lights will blink continuously if any of the following occur: -- A door is opened without using the remote key or smart key...
