Hyundai Venue (QX): Seat Electrical / Seat Heater Switch. Repair procedures

Hyundai Venue (QX) (2020-2025) Service Manual / Body Electrical System / Seat Electrical / Seat Heater Switch. Repair procedures

Removal

[Front Seat]

1.	Disconnect the negative (-) battery terminal.

2.	Remove the floor console upper cover.

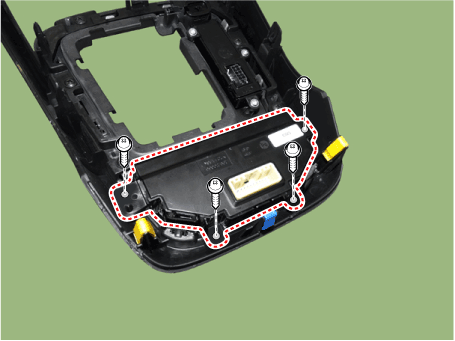

3.	Remove the seat heater switch (A) from floor console upper cover.

Installation

[Front Seat Heater Switch]

1.	Install the seat heater switch.

2.	Install the floor console upper cover.

3.	Connect the negative (-) battery terminal.

❮Seat Heater Switch. Schematic diagrams

Circuit Diagram [Front Seat Heater Switch (Driver)]

Air Ventilation Seat. Components and components location❯

Component Location [Front Ventilation Seat] 1. Ventilation seat unit (Assist seat only) 2. Ventilation seat blower
