Replacement

•	When removing with a flat-tip screwdriver or remover,wrap protective tape around the tools to preventdamage to components.

•	Take care not to scratch the body surface.

1.	Remove the rear door module. (Refer to Rear Door - "Rear Door Module")

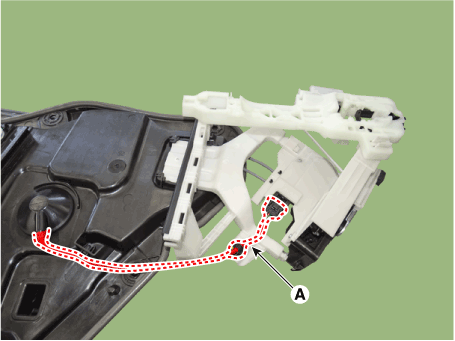

2.	Separate the rear door outside handle connector (A) and loosen the mounting clips.

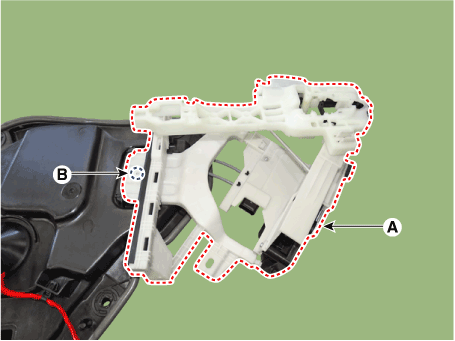

3.	Loosen the mounting bolt, remove the rear door inside handle case (A) and rubber packing (B).

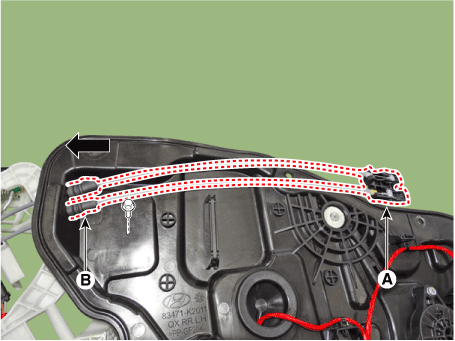

4.	Remove the front door latch (A) by gently lifting the locking pin (B).

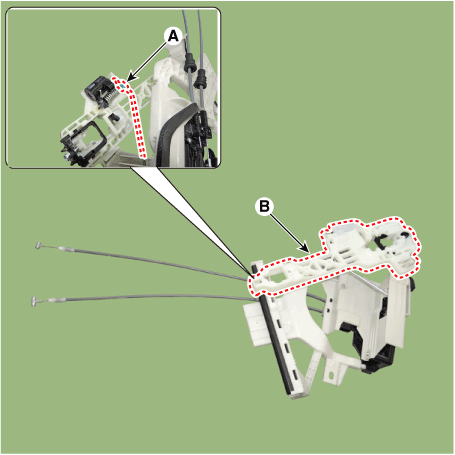

5.	Open the cover to remove the rod (A) and remove the front door outside handle base (B).

To install, reverse removal procedure.

•	Make sure the connector is connected properly.

•	Make sure the door locks / unlocks and opens / closes properly.

•	Replace any damaged clips (or pin-type retainers).
