Hyundai Venue: Identification Numbers / General information
Hyundai Venue (QX) (2020-2024) Service Manual / General Information / Identification Numbers / General information

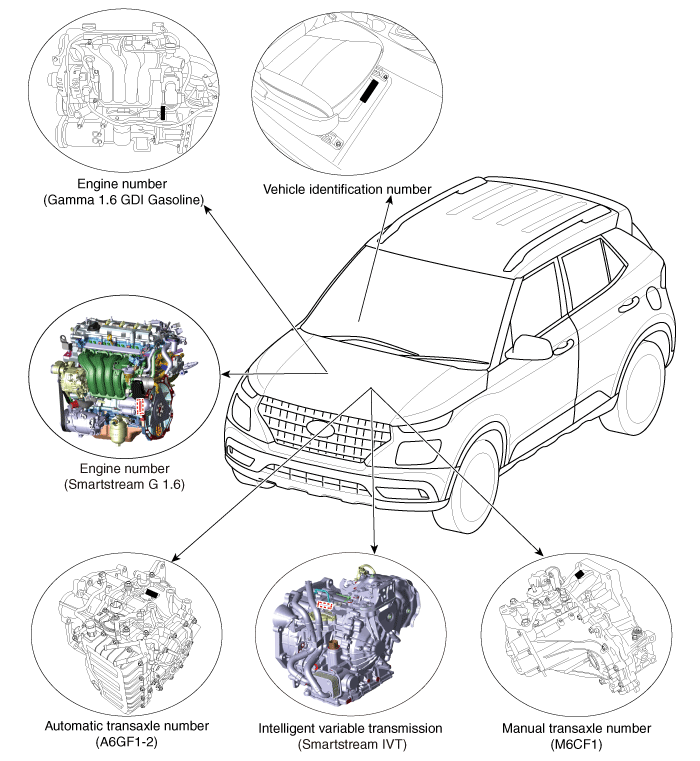

| Identification Number |
Identification Number Description
Vehicle Identification Number
| 1. |
World Manufacturer Identifier (WMI)
- 3KP : Passenger vehicle
- KMH : Passenger vehicle
|
| 2. |
Vehicle line
- R : QX
|
| 3. |
Model & Series
- A : Low grade (L)
- B : Middle - Low grade (GL)
- C : Middle grade (GLS, JSL, TAX)
- D : Middle-High grade (HGS)
- E : High grade (TOP)
|
| 4. |
Body/Cabin type, Gross Vehicle Weight Rating
- 2 : Sedan - 2 door
- 3 : Sedan - 3 door
- 4 : Sedan - 4 door
- 5 : Sedan - 5 door
- 6 : Coupe
- 7 : Convertible
- 8 : Wagon
- 9 : Commercial Van
- 0 : Pick-Up
|
| 5. |
Restraint system, Brake system
- 1 : Both side - Active belt
|
| 6. |
Engine type
- 2 : Gasoline engine 1.6 GDI (Gamma)
- 3 : Smartstream G 1.6
|
| 7. |
Check digit or Driver’s side & Transmission
Except U.S.A, Canada, Mexico, Gulf Cooperation Council, China, Yemen
- A : LHD & MT
- B : LHD & AT
- C : LHD & MT+Transfer
- D : LHD & AT+Transfer
- E : LHD & CVT
- F : LHD & Reduction Gear
- G : LHD & DCT
- H : LHD & DCT+Transfer
- L : RHD & MT
- M : RHD & AT
- N : RHD & MT+Transfer
- S : RHD & AT+Transfer
- T : RHD & CVT
- U : RHD & Reduction Gear
- V : RHD & DCT
- W : RHD & DCT+Transfer
For U.S.A, Canada, Mexico, Gulf Cooperation Council, China, Yemen
- Check digit : 0 - 9, ×
|
| 8. |
Model year
- K : 2019, L : 2020, M : 2021, N : 2022 ...
|
| 9. |
Plant of production
- A : Asan (Korea)
- C : Cheonju (Korea)
- U : Ulsan (Korea)
|
| 10. |
Transaxle production sequence number
- 000001 - 999999
|
Engine Number
| 1. |
Engine fuel
- G : Gasoline
|
| 2. |
Engine range
- 4 : 4 cycle 4 cylinder
|
| 3. |
Engine development order
- F : Gamma engine
|
| 4. |
Engine capacity
- G : 1591cc (Gamma GDI engine)
- M : 1598cc (Smartstream G 1.6)
|
| 5. |
Model year
- K : 2019, L : 2020, M : 2021, N : 2022 ...
|
| 6. |
Plant of production
- A : Asan (Korea)
- B : Beijing (China)
- H : Hwasung (Korea)
- K : Montgomery (U.S.A)
- M : Chennai (India)
- P : Poseung (Korea)
- S : Sohari (Korea)
- T : Izmit (Turkey)
- U : Ulsan (Korea)
- W : Shandong (China)
- Z : Zilina (Slovakia)
- 1 : Yancheng (China)
|
| 7. |
Engine production sequence number
|
Transaxle Number
Intelligent Variable Transmission Number (Smatrstream IVT)
| 1. |
Model
- CX : Smatrstream IVT
|
| 2. |
Model year
- K : 2019, L : 2020, M : 2021 N : 2022...
|
| 3. |
Final gear ratio
- T : 5.715
|
| 4. |
Detailed classification
- F : Gamma-II 1.6 MPI
|
| 5. |
Plant of production
- 4 : Powertech Plant 4
- M : PTM
- C : PTC Plant 1
- D : PTC Plant 2
- E : PTC Plant 3
|
| 6. |
Transaxle production sequence number
- 000001 - 999999
|
Automatic (A6GF1-2)
| 1. |
Model
- RA : A6GF1-2 (Gamma 1.6 MPI, Kappa 1.4 MPI)
|
| 2. |
Model year
- K : 2019, L : 2020, M : 2021, N : 2022 ...
|
| 3. |
Final gear ratio
- Y : 3.574
- S : 3.383
|
| 4. |
Detailed classification
- C : Kappa 1.4 MPI
- F : Gamma 1.6 MPI
|
| 5. |
Plant of production
- 2 : Powertech Plant2
- 4 : Powertech Plant4
- U : Ulsan Plant 1
- S : Ulsan Plant 2
- N : Ulsan Plant 3
- H : Hwasung
|
| 6. |
Transaxle production sequence number
- 000001 - 999999
|
Manual (M6CF1)
| 1. |
Assembly code of plant
|
| 2. |
Model year
- J : 2018, K : 2019, L : 2020, M : 2021 ...
|
| 3. |
Plant of production
- H : Hwasung (Korea)
- U : Ulsan (Korea)
- W : Wia
- M : Chennai
- J : Ostrava
- B : Beijing
|
| 4. |
Transaxle production sequence number
- 000001 - 999999
|
Paint Code
[1Ton]
|
Code |
Color |
|
NKA |
Phantom black |
|
R3G |
Galactic Gray |
|
N4R |
Exotic Green |
|
T2X |
Typhoon Silver |
|
PR2 |
Fiery Red |
|
YR2 |
Lava Orange |
|
RS5 |
Gray |
|
YP5 |
Intense Blue |
|
TN6 |
denim |
[2Ton]
|
Code |
Color |
|
N41 |
Green + Black Roof |
|
PR1 |
Fiery Red + Black Roof |
|
P51 |
Gray + Black Roof |
|
R31 |
Galactic Gray + Black Roof |
|
T21 |
Silver + Black Roof |
|
WA1 |
White + Black Roof |
|
WG1 |
Acid yellow + Black Roof |
|
YP1 |
Blue + Black Roof |
|
YY1 |
Lava Orange + Black Roof |
|
NK3 |
Black + White Roof |
|
TN3 |
denim + White Roof |
|
RS4 |
Gray + Acid yellow |
