Removal and Installation
1.
Remove the crankshaft damper pulley.
(Refer to Timing System - "Crankshaft Damper Pulley")
2.
Remove the front oil seal.
Hyundai Venue. Front Oil Seal. Repair procedures
•

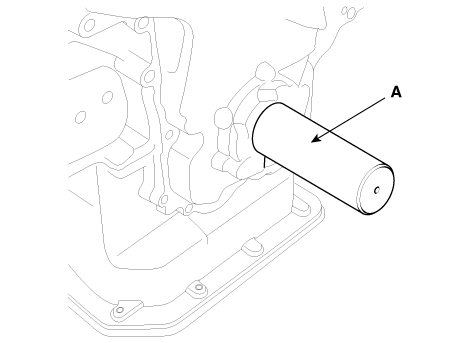

Using the SST (09455-21200), reassemble the timing chain cover oil seal (A).

Hyundai Venue. Front Oil Seal. Repair procedures
3.
Installation is reverse order of removal.

    Components 1. Front oil seal

    Components 1. Timing chain cover
