Hyundai Venue: Keyless Entry And Burglar Alarm / Description and operation
Burglar Alarm State [B/A State]
B/A State
|
Description
|
DISARM
|
| 1) |
In "DISARM" state, no vehicle start inhibition. So, when door,
hood, or Tailgate is opened, there is no alarm sound and flashing.
|
| 2) |
If the battery is disconnected while the state is not "ARM/ARMWAIT/ALARM/REARM",
B/A state is set to "DISARM" state.
|
|
ARMWAIT
|
| 1) |
In "ARMWAIT" state, when timer "8sec." is running, if this timer
reaches "30sec", state transits to "ARM" state.
|
| 2) |
If the battery is disconnected while the state is "ARMWAIT",
B/A state is set to "ARMWAIT" state and timer "30sec" is restarted.
|
|
※ Remark: On Smart key system, it works the same way with passive lock
B/A State
|
Description
|

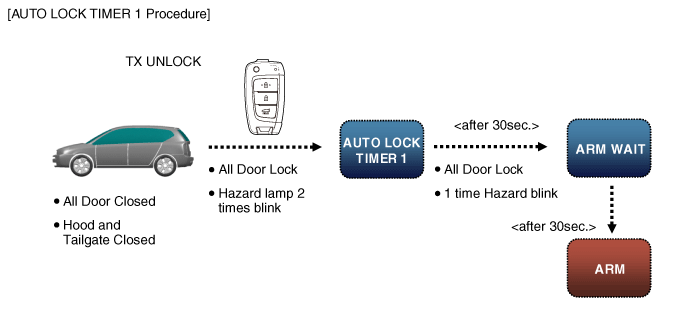

AUTO LOCK TIMER 1
|
| 1) |
In "AUTOLOCKTIMER1" state, timer "30sec."is running. If this
timer expired, the auto lock command is generated "Lock command".
|
| 2) |
When "Lock command" operated, All Door changed lock and closed
then B/A state changes "AUTOLOCKTIMER1" to "ARMWAIT
|
| 3) |
In "AUTOLOCKTIMER1" state, Security Indicator keeps blinking.
In "AUTOLOCKTIMER1" state, timer "30sec."is running. If this
timer expired, the auto lock command is generated "Lock command".
When "Lock command" operated, All Door changed lock and closed
then B/A state changes "AUTOLOCKTIMER1" to "ARMWAIT
|
|
※ Remark: On Smart key system, it works the same way with passive unlock
B/A State
|
Description
|

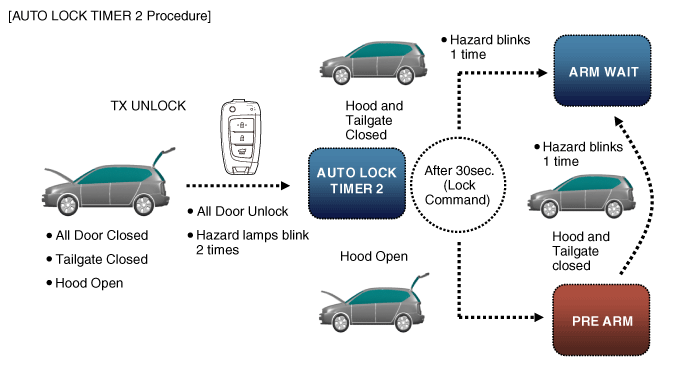

AUTO LOCK TIMER 2
|
| 1) |
In "AUTOLOCKTIMER2" state, when timer "30sec."is running, if
this timer expired, the auto lock command is generated "Lock
command".
|
| 2) |
All doors are Locked, Hood is closed and Tailgate is closed
when "Lock command" operated, then B/A state changes to"AUTOLOCKTIMER2"
when "Lock Command" generated with Hood open.
|
| 3) |
When "Unlock command" operated on the condition of All Door
closed and Hood open, B/A state changes to "AUTOLOCKTIMER2".
|
|
※ Remark : On Smart key system, it works the same way with passive unlock
B/A State
|
Description
|
PRE ARM
|
| 1) |
The "PREARM" state is when user try to change to arm but pre-condition
are not satisfied (door open, tailgate open, or hood open).
|
| 2) |
B/A state changes to "PREARM" when TX Lock command occurs with
any door Open, Hood or Tailgate Open.
|
| 3) |
B/A state changes to "PREARM" when "30sec." timer expired in"AUTOLOCKTIMER2"with
Hood or Tailgate Open
|
| 4) |
The "PREAMR" state changes to "ARM" when all doors closed, All
doors locked and Hood and Tailgate closed.
|
| 5) |
The "PREAMR" state changes to "DISARM" when Any Door Unlock
|
|
B/A State
|
Description
|
RE ARM
|
| 1) |
In "REARM" state, if the vehicle intrusion is detected, flashing
and sound is restarted, again and state transits to "ALARM"
state.
|
| 2) |
B/A state changes to "REARM" after the timer "27sec." expires
in "ALARM" state with All doors closed and lock.
|
|
B/A State
|
Description
|
AUTOLOCK TIMER3
|
| 1) |
B/A state changes to "AUTOLockTIMER3", when TX-Tailgate command
operated.
|
| 2) |
B/A state changes "AUTOLOCKTIMER3" to "ARMWAIT", when the "30sec."
timer expires with all doors lock and closed.
|
| 3) |
B/A state changes "AUTOLOCKTIMER3" to "DISARM", when any door
open.
|
| 4) |
In "AUTOLOCKTIMER3" state, timer "30sec." timer is running.
If this timer expired, state transits to "PREARM" state with
Tailgate Open.
|
|
B/A State
|
Description
|
ARM HOLD
(Alarm hold : Trunk)
※Non-PTL option
|
| 1) |
The ARM HOLD mode is similar to the trunk alarm hold mode for
current cars.
|
| 2) |
If the trunk is opened by a remote controller (including the
smart key) in the ARM mode, the Hold mode will be turned on,
in which the theft alarm is held for the trunk.
|
| 3) |
As long as the trunk is opened, ARM HOLD mode continues.
|
| 4) |
When the trunk is closed, the 30-second timer is activated.
Since the ARM HOLD mode is on for 30 seconds, the theft alarm
is not issued even though the trunk is opened.
|
| 5) |
ARM mode is on as soon as 30 seconds after the trunk is closed.
|
| 6) |
Even in ARM HOLD mode, the door and hood are in the ARM mode.
They issue alarms normally when a theft occurs.
|
|
Note 1: ARM HOLD is a function that holds the ARM mode on the trunk. It keeps
the ARM mode on the door and hood.
Note 2: When using the ignition key to open the trunk, the ARM HOLD function
works in the same way, provided that the "Door Key Burglar Alarm" function should
be enabled. if this is disabled, the key-based ARM HOLD is off and using the
key to opening the trunk is determined as a theft and the alarm is issued.
B/A State
|
Description
|
RE ARM
(ARM mode is on again)
|
| 1) |
If the door, hood and trunk are all closed after the termination
of ALARM mode, it means that the ARM mode is on again.
|
| 2) |
At this time the actuator state (door lock/unlock) is neglected
and ARM mode is kept until the remote control signal is received
(normal ARM mode).
|
|
RESET
|
| 1) |
When the battery is removed in ALARM or RE ARM mode, RESET mode
is on.
|
| 2) |
When the battery is installed after RESET, the theft alarm operation
resumes. (instead of remained output, 27 seconds ON/10 seconds
OFF output in three times
|
|
B/A State
|
Description
|
KEY ON 30 second deactivation
(Non-Smart Key option)
|
| 1) |
For non-smart cars, a 30-second standby with the ignition key
on during ALARM mode will deactivate the theft alarm status.
|
| 2) |
Even before 3O seconds pass, if the engine starts (Alternator
"L" terminal voltage is HI: sent from the cluster module
to CAN data), the theft alarm is instantly deactivated.(no start
proposition control: The immobilizer system is applied by default
and the engine start by the registered immobilizer key is allowed
though during alarming.)
※In a smart key vehicle, the alarm is deactivated instantly
after the smart key authentication.
|
|
When ARM mode is on, the trunk OPEN and central door unlock are not allowed.
|
| 1) |
From the moment that the remote controller or smart key based
all door lock is activated and ARM standby mode (ARM WAIT) is
on, the central door unlock switch of the indoor trunk unlock
switch or DDM & ADM (driver seat power window switch & passenger
seat power window switch) is disabled. (theft prevention)
※This function works in the same in ARM WAIT, ARM, ALARM and
RE ARM modes.
|
|
Component Location
1. Hood switch
2. Integrated Body Control Unit (IBU)
3. Door lock / unlock buzzer
4. Front door lock actuator &
switch
5...
Inspection
Front Door Lock Module Inspection
1.
Remove the front door trim.
(Refer to Body - "Front Door Trim")
2...
