Inspection
Front Door Lock Module Inspection
1.
Remove the front door trim.
(Refer to Body - "Front Door Trim")
2.
Remove the front door module.
(Refer to Body - "Front Door Module")
3.

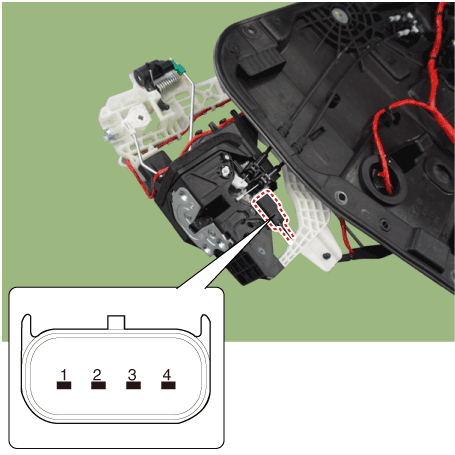

Disconnect the connectors from the actuator.

Hyundai Venue. Repair procedures

4.

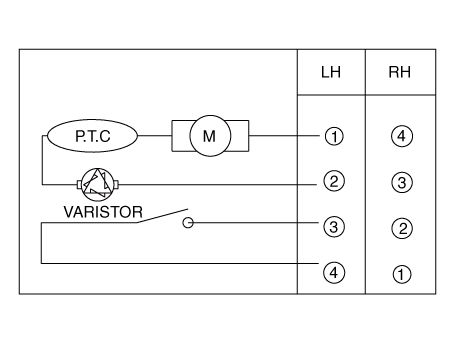

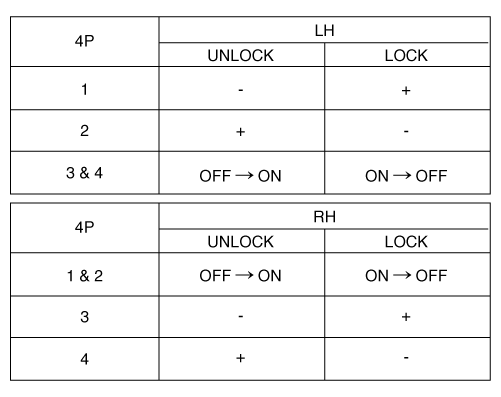

Check actuator operation by connecting power and ground according to the table. To prevent damage to the actuator, apply battery voltage only momentarily.

Hyundai Venue. Repair procedures

Hyundai Venue. Repair procedures

Rear Door Latch Inspection
1.
Remove the rear door trim.
(Refer to Body - "Rear Door Trim")
2.
Remove the rear latch.
(Refer to Body - "Rear Door Latch")
3.

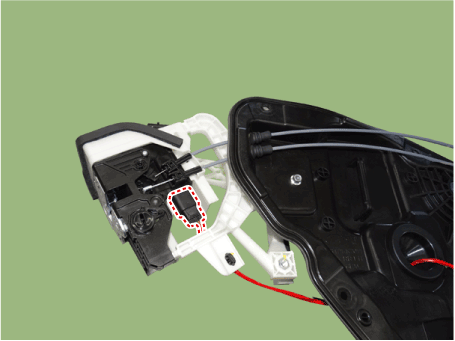

Disconnect the connectors from the actuator.

Hyundai Venue. Repair procedures

4.

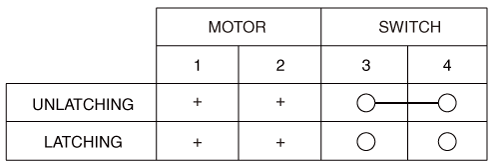

Check actuator operation by connecting power and ground according to the table. To prevent damage to the actuator, apply battery voltage only momentarily.

Hyundai Venue. Repair procedures

Hyundai Venue. Repair procedures

Trunk Lock Module Inspection
1.
Remove the tailgate trim.
(Refer to Body - "Tailgate Trim")
2.

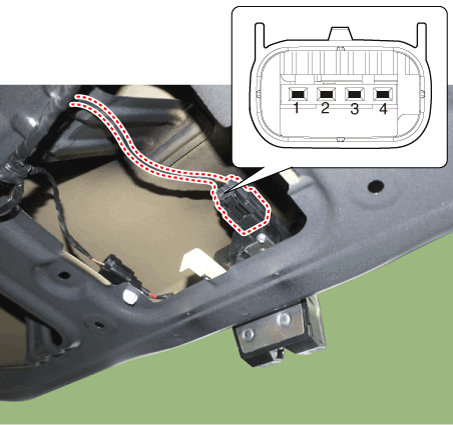

Disconnect the connector from the actuator.

Hyundai Venue. Repair procedures

3.

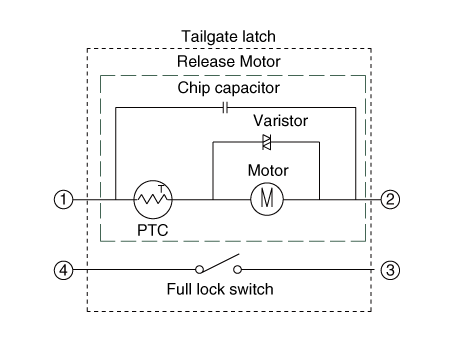

Check actuator operation by connecting power and ground according to the table. To prevent damage to the actuator, apply battery voltage only momentarily.

Hyundai Venue. Repair procedures

Hyundai Venue. Repair procedures

Hood Switch
1.

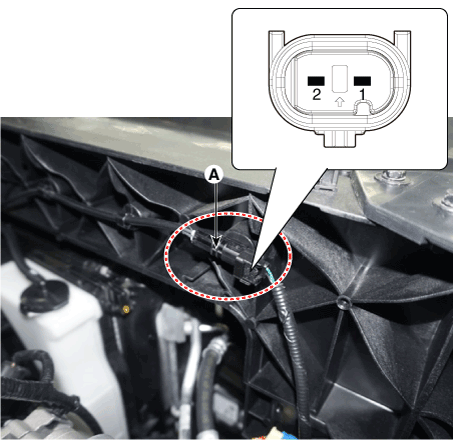

Disconnect the connector (A) and bolts from the hood switch.

Hyundai Venue. Repair procedures

2.

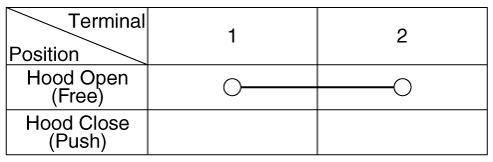

Check for continuity between the terminals and ground according to the table.

Hyundai Venue. Repair procedures

    Description and operation

    Description Burglar Alarm State [B/A State] B/A State Description DISARM 1) In "DISARM" state, no vehicle start inhibition...

    Transmitter. Repair procedures

    Inspection 1. Check that the red light flickers when the door lock or unlock button is pressed on the transmitter...
