Hyundai Venue: Tire Pressure Monitoring System / Components and components location
Hyundai Venue (QX) (2020-2025) Service Manual / Suspension System / Tire Pressure Monitoring System / Components and components location

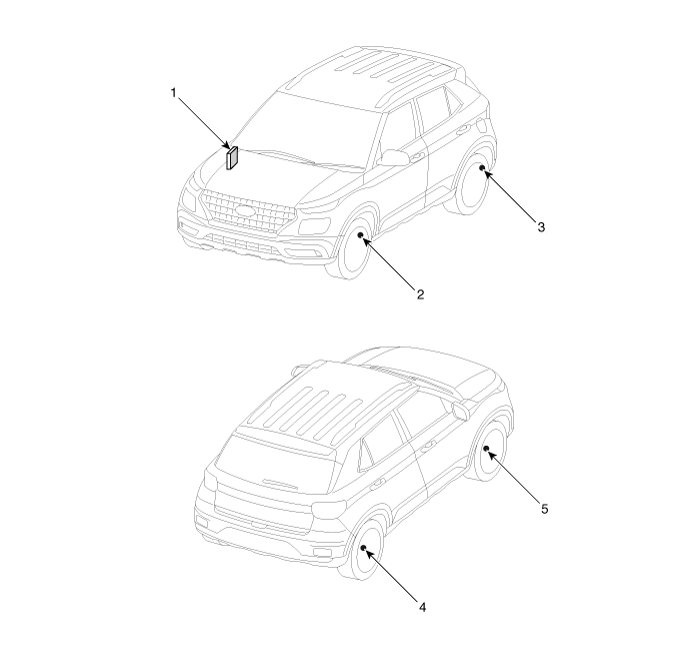

| Components |
| 1. Integrated Body Control Unit
(IBU) 2. TPMS sensor (FL) 3. TPMS sensor (RL) |
4. TPMS sensor (RR) 5. TPMS sensor (FR) |
Description and operation
Description
The Tire Pressure Monitoring System (TPMS) monitors the pressure and temperature
inside the tire in order to warn the driver of changes in pressure which may
influence the operation of the vehicle...
