Hyundai Venue: Ignition Lock Switch / Clutch Pedal. Repair procedures

Hyundai Venue (QX) (2020-2025) Service Manual / Clutch System / Ignition Lock Switch / Clutch Pedal. Repair procedures

Removal
1.
Turn ignition switch OFF and disconnect the negative (-) battery cable.
2.
Remove the crash pad lower panel.
(Refer to Body - "Crash Pad")
3.

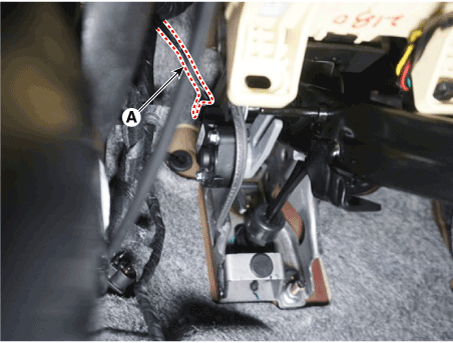

Disconnect the ignition lock & clutch switch connector (A).

Hyundai Venue. Clutch Pedal. Repair procedures

4.

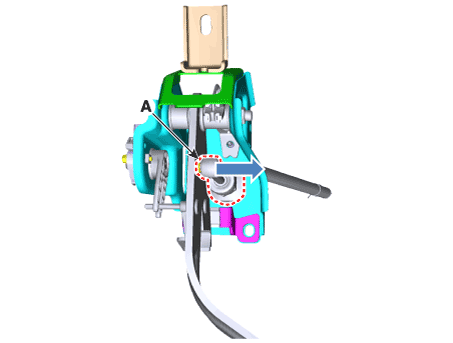

Separate the push rod (A).

Hyundai Venue. Clutch Pedal. Repair procedures

5.

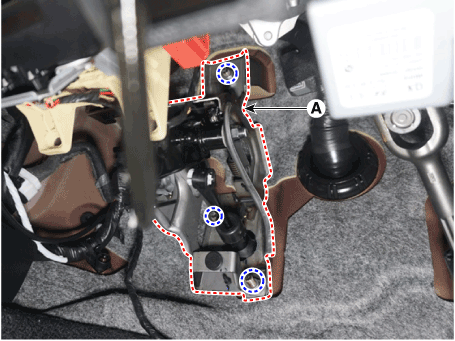

Remove the clutch pedal assembly (A) after loosening the bolts (B).
Tightening torque :
16.7 - 25.5 N.m (1.7 - 2.6 kgf.m, 12.3 - 18.8 Ib-ft)

Hyundai Venue. Clutch Pedal. Repair procedures

Hyundai Venue. Clutch Pedal. Repair procedures
Rotate the clutch pedal.

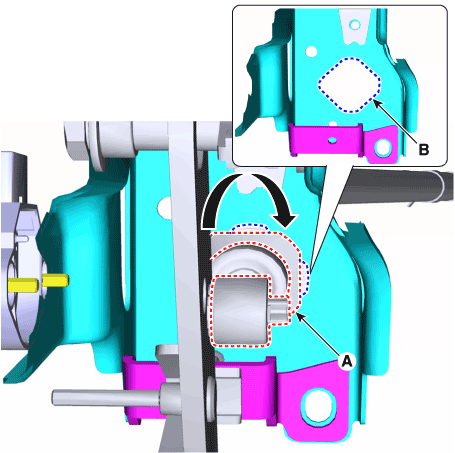

Align the clutch pedal hole (B) and the clutch mater cylinder (A) and then removing the clutch pedal.

Hyundai Venue. Clutch Pedal. Repair procedures

Installation
1.
To install, reverse the removal procedures.
Hyundai Venue. Clutch Pedal. Repair procedures

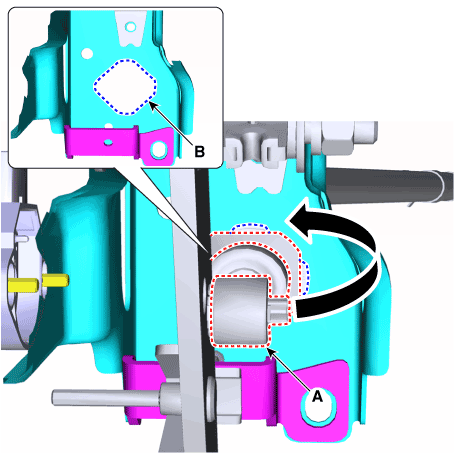

Align the clutch pedal hole (B) and the clutch mater cylinder (A).
Rotate the clutch pedal and then installing the clutch pedal.

Hyundai Venue. Clutch Pedal. Repair procedures

    Clutch Pedal. Components and components location

    Components 1. Clutch pedal assembly 2. Clutch pedal arm 3. Ignition lock & clutch switch 4. Clutch master cylinder 5...

    Clutch Tube. Components and components location

    Components 1. Clutch pedal assembly 2. Clutch pedal arm 3. Ignition lock & clutch switch 4. Clutch master cylinder 5...
