Hyundai Venue: Audio / USB jack. Schematic diagrams
Hyundai Venue (QX) (2020-2024) Service Manual / Body Electrical System / Audio / USB jack. Schematic diagrams

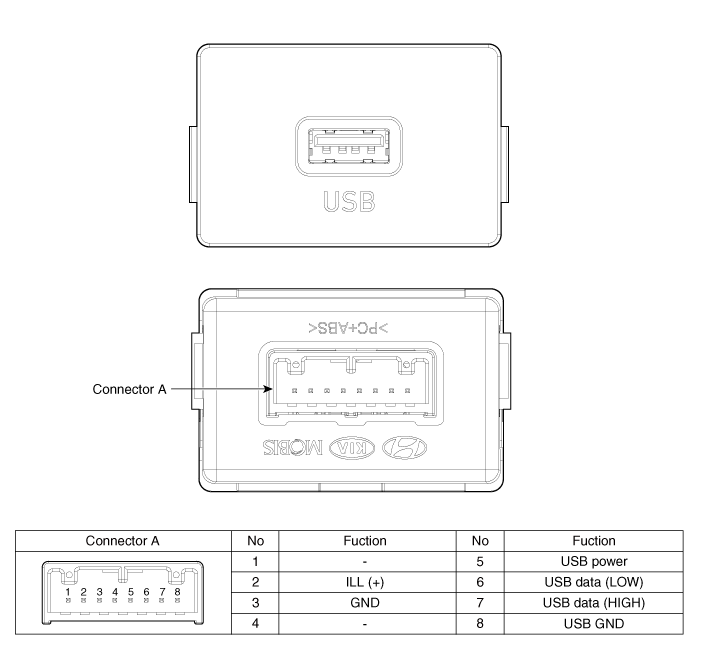

| Circuit Diagram |
[Compect Audio type]
[Display Audio type]
Audio Remote Control. Repair procedures
Inspection
1.
Check for resistance between terminals in each switch position (LH).
[LH : Audio + Hands free]
Switch
Connector terminal
Resistance
(±5%)
SEEK Up
1 - 6
430Ω
SEEK Down
1...
USB jack. Description and operation
Description
The multimedia jack on the console upper cover is for customers who like to
listen to external portable music players like the MP3 etc...
