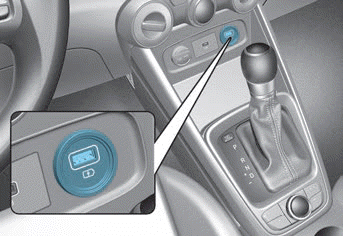

The USB charger is designed to recharge batteries of small size electrical devices using a USB cable.
The electrical devices can be recharged when the ignition switch or the Engine Start/Stop button is in the ACC, ON or START position.
The battery charging state may be monitored on the electrical device. Disconnect the USB cable from the USB port after use.
- A smart phone or a tablet PC may get warmer during the re-charging process. It does not indicate any malfunction with the charging system.
- A smart phone or a tablet PC, which adopts a different re-charging method, may not be properly recharged. In this case, use an exclusive charger of your device.
- The charging terminal is only to recharge a device. Do not use the charging terminal either to turn ON an audio or to play media on the AVN.
