Hyundai Venue: Automatic Transaxle Control System / Transaxle Control Module (TCM). Schematic diagrams

Hyundai Venue (QX) (2020-2024) Service Manual / Automatic Transaxle System / Automatic Transaxle Control System / Transaxle Control Module (TCM). Schematic diagrams

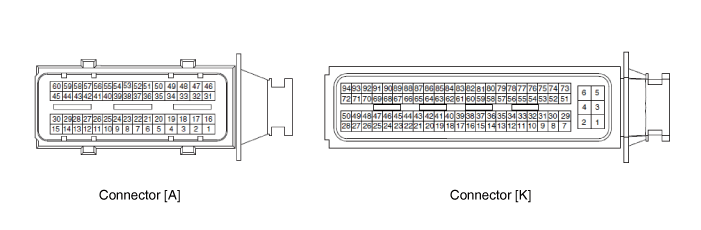

TCM Connector

Hyundai Venue. Transaxle Control Module (TCM). Schematic diagrams

Connector [A]
Pin
Description
2
 35R clutch control solenoid valve (35R/C_VFS)
4
 26 brake control solenoid valve (26/B_VFS)
5
 Underdrive brake control solenoid valve (UD/B_VFS)
8
 Inhibitor switch signal S2 (R)
19
 Line pressure control solenoid valve (LINE_VFS)
21
 Input speed sensor power
22
 Output speed sensor power
32
 Torque converter control solenoid valve (T/CON_VFS)
33
 VB (Battery voltage)
34
 Solenoid supply power 2
37
 Output speed sensor signal
38
 Inhibitor switch signal S4 (D)
39
 Inhibitor switch signal S1 (P)
40
 Manual mode up shift
42
 Manual mode select switch
43
 Oil temperature sensor (+)
45
 VB (Battery voltage)
46
 ON/OFF solenoid valve A(SS-A)
47
 Overdrive clutch control solenoid valve (OD/C_VFS)
48
 VB (Battery voltage)
49
 Solenoid supply power 1
52
 Input speed sensor signal
54
 Inhibitor switch signal S3 (N)
57
 Manual mode down shift
58
 Oil temperature sensor (-)

TCM Terminal input/ output signal
Connector [A]
Pin
Description
Condition
Input/output value
Type
Level
2
 35R clutch control solenoid valve
(35R/C_VFS)
 -
 Output
 0V/Battery voltage level
9V < Battery voltage level < 16V
4
 26 brake control solenoid valve
(26/B_VFS)
 -
 Output
 0V/Battery voltage level
9V < Battery voltage level < 16V
5
 Underdrive brake control solenoid valve
(UD/B_VFS)
 -
 Output
 0V/Battery voltage level
9V < Battery voltage level < 16V
8
 Inhibitor switch signal S2 (R)
 High
 Input
 0V/Battery voltage level
Low
 9V < Battery voltage level < 16V
19
 Line pressure control solenoid valve
(LINE_VFS)
 -
 Output
 0V/Battery voltage level
9V < Battery voltage level < 16V
21
 Input speed sensor power
 ON
 Power
 0V/9V
OFF
22
 Output speed sensor power
 ON
 Power
 0V/9V
OFF
32
 Torque converter control solenoid valve
(T/CON_VFS)
 -
 Output
 0V/Battery voltage level
9V < Battery voltage level < 16V
34
 Solenoid power 2
Power
 0V/Battery voltage level
9V < Battery voltage level < 16V
37
 Output speed sensor signal
 High
 Input
 0.7V/1.4V
Low
38
 Inhibitor switch signal S4 (D)
 High
 Input
 0V/Battery voltage level
Low
 9V < Battery voltage level < 16V
39
 Inhibitor switch signal S1 (P)
 High
 Input
 0V/Battery voltage level
Low
 9V < Battery voltage level < 16V
40
 Manual mode up shift
 Up ON
 Input
 0V/Battery voltage level
Other
 9V < Battery voltage level < 16V
42
 Manual mode select switch
 Manual mode
 Input
 0V/Battery voltage level
Other
 9V < Battery voltage level < 16V
43
 Oil temperature sensor (+)
 ON
 Input
 0V/3.3V
OFF
46
 ON/OFF solenoid valve (SS-A)
 High
 Output
 0V/Battery voltage level
Low
 9V < Battery voltage level < 16V
47
 Overdrive clutch control solenoid valve
(OD/C_VFS)
 -
 Output
 0V/Battery voltage level
9V < Battery voltage level < 16V
49
 Solenoid power 1
 　-
 Power
 0V/Battery voltage level
9V < Battery voltage level < 16V
52
 Input speed sensor signal
 High
 Input
 0.7V/1.4V
Low
54
 Inhibitor switch signal "S3"
 High
 Input
 0V/Battery voltage level
Low
 9V < Battery voltage level < 16V
57
 Manual mode down shift
 Down ON
 Input
  0V/Battery voltage level
Other
 9V < Battery voltage level < 16V
58
 Oil temperature sensor (-)
 -
 Ground
 0V

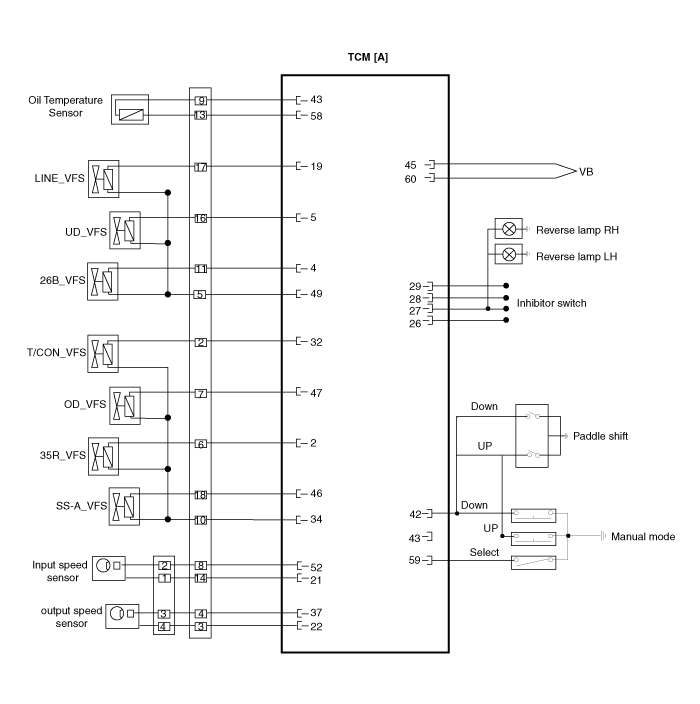

Circuit Diagram

Hyundai Venue. Transaxle Control Module (TCM). Schematic diagrams

    Transaxle Control Module (TCM). Description and operation

    Description • Monitors the vehicle's operating conditions to determine the optimal gear setting. • Performs a gear change if the current gear setting differs from the identified optimal gear setting...

    Transaxle Control Module (TCM). Repair procedures

    Inspection ▶ Transaxle Control Module(TCM) Problem Inspection Procedure 1. TEST TCM GROUND CIRCUIT: Measure resistance between TCM and chassis ground using the backside of TCM harness connector as TCM side check point...
