Hyundai Venue (QX): Driver Attention Warning (DAW) / Resetting the System. System Standby
Resetting the System
- The last break time is set to 00:00 and the driver's attention level is set to 5 (very attentive) when the driver resets Driver Attention Warning system.
- Driver Attention Warning system resets in the following situations.
-- The engine is turned OFF.
-- The driver unfastens the seat belt and then opens the driver's door.
-- The vehicle is stopped for more than 10 minutes. - Driver Attention Warning system operates again, when the driver restarts driving.

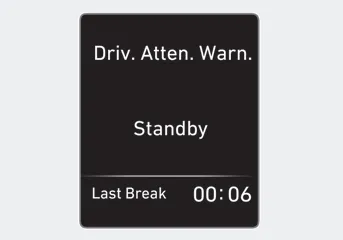

System Standby
Driver Attention Warning system enters the ready status and displays the 'Standby' screen in the following situations.
-- The camera does not detect the lanes.
-- Driving speed remains over 112 MPH (180 km/h).
System setting Driver Attention Warning system is set to be on, when your vehicle is first delivered to you from the factory. To turn ON Driver Attention Warning system, turn on the engine, and then select 'User Settings → Driver Assistance → Driver Attention Warning → Inattentive Driving Warning’ on the LCD display.
Check Driver Attention Warning (DAW) system When the warning message appears, the system is not working properly. In this case, have the vehicle inspected by an authorized HYUNDAI dealer.
