Hyundai Venue: Integrated Body Control Unit (IBU) / Repair procedures
1. |
Disconnect the negative (-) battery terminal.
|
2. |
Remove the glove box.
(Refer to Body - "Glove Box Housing")
|
3. |
Disconnect the IBU connectors.
|
4. |

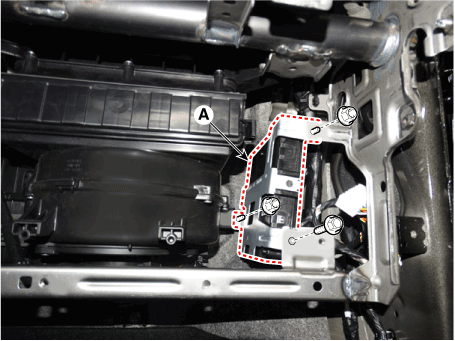

Remove the smart key unit (A) after loosening the nuts.

|
5. |

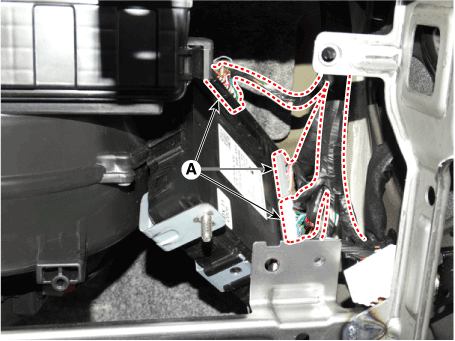

Remove the smart key unit the connectors (A).

|
• |

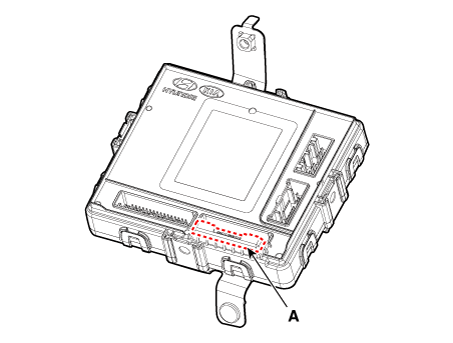

For the european specification, when removing the IBU connector,
the IBU will be damaged by safety bracket (A).
So, replace IBU with a new one.
|

|
1. |
Install the body control module.
|
2. |
Install the glove box.
|
1. |
In the body electrical system, failure can be quickly diagnosed by using
the vehicle diagnostic system (GDS).
(1) |
Fault Code Searching : Checking failure and code number (DTC)
|
(2) |
Data Analysis : Checking the system input/output data state
|
(3) |
Actuation test : Checking the system operation condition
|
(4) |
S/W Management : Controlling other features including system
option setting and zero point adjustment
|
|
2. |

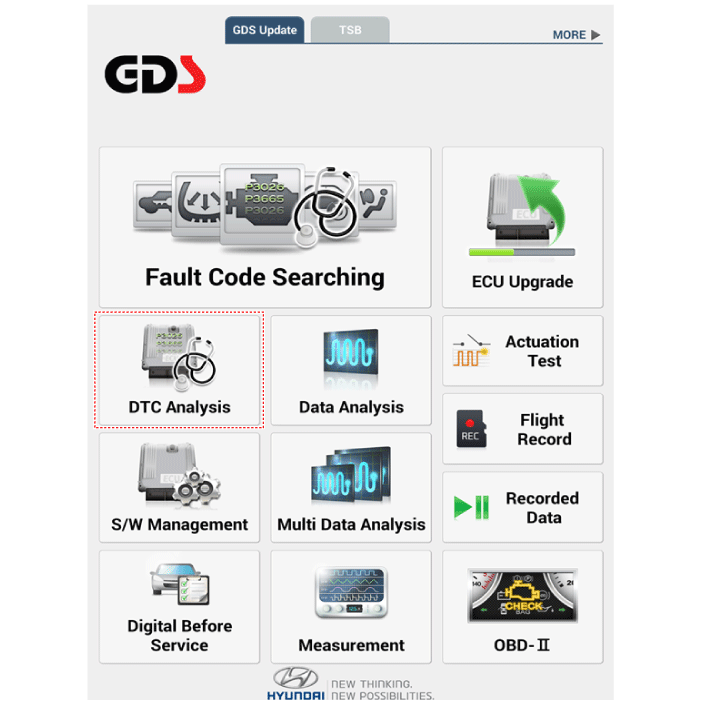

If diagnose the vehicle by GDS, select "DTC Analysis" and "Vehicle".

|
3. |

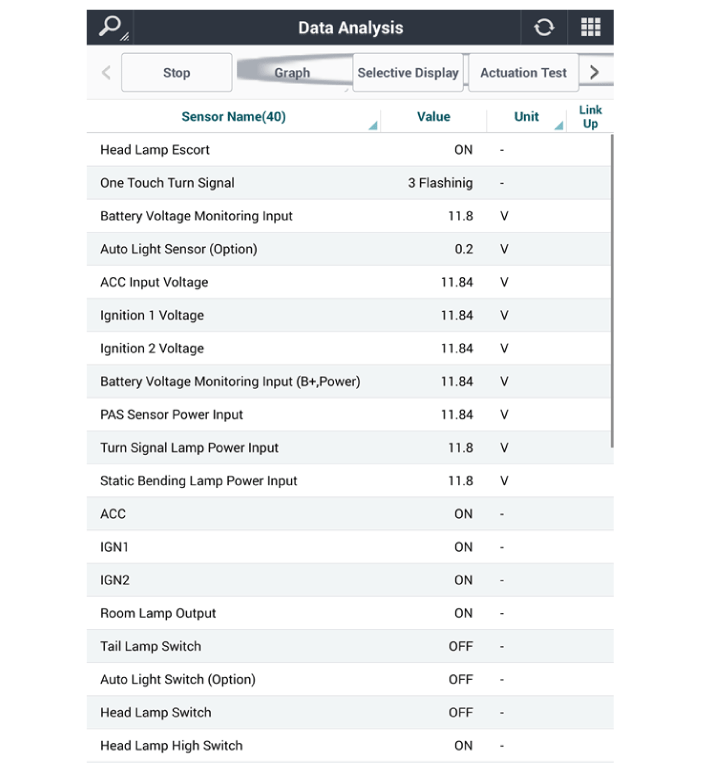

If check current status, select the "Data Analysis" and "Car model".

|
4. |

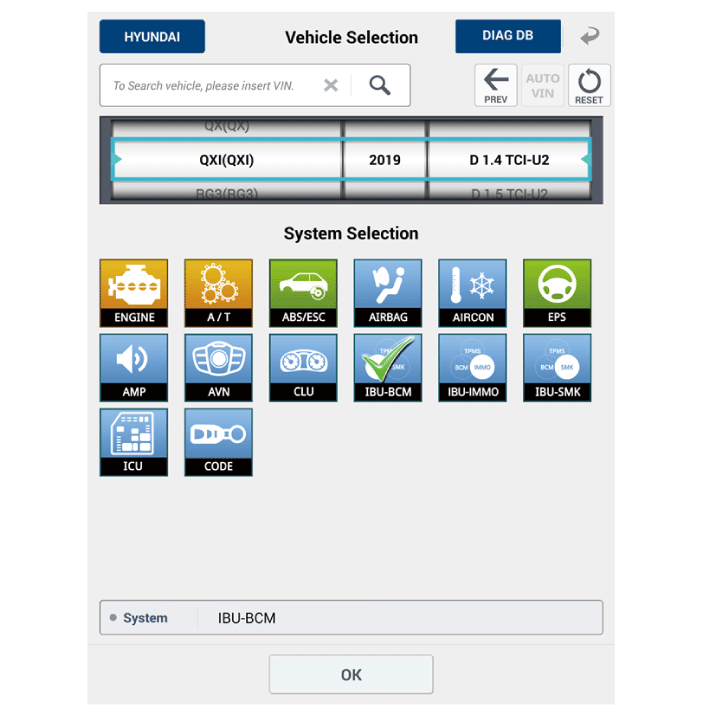

Select the 'IBU_BCM' to search the current state of the input/output
data.


|
Function
No
Item
Description
1
Washer Linked Wiper
–
If the washer switch is pressed ON for 0...
