Replacement

•	When installing the belt, make sure not to damage the pretensioner.

1.	Remove the rear seat assembly. (Refer to Rear Seat - "Rear Seat Assembly")

2.	Remove the luggage side trim. (Refer to Interior Trim - "Luggage Side Trim")

3.	Remove the rear pillar trim. (Refer to Interior Trim - "Rear Pillar Trim")

Loosen the mounting bolts and remove the second row seat belt retractor (A).

Tightening torque :

39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.8 - 39.8 lb-ft)

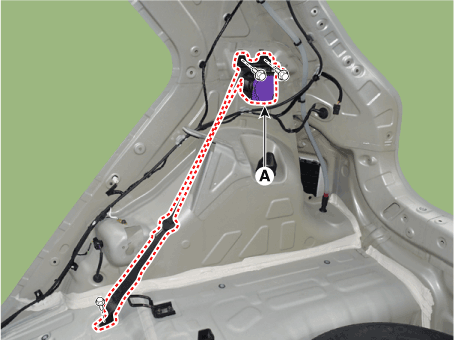

[RH]

Hyundai Venue. Rear Seat Belt Retractor. Repair procedures

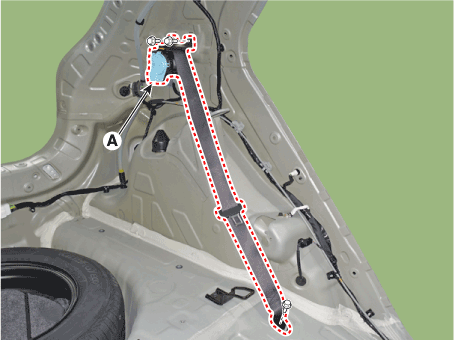

[LH]

Hyundai Venue. Rear Seat Belt Retractor. Repair procedures

5.	To install, reverse removal procedure.
