Removal and Installation
1.
Disconnect the battery negative terminal.
2.
Remove the engine room under cover.
3.
Drain the engine oil.
(Refer to Lubrication System - "Engine Oil")
4.

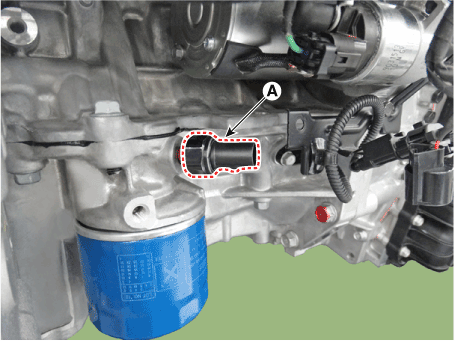

Remove the oil pressure switch (A).
(1)
Disconnect the oil pressure switch connector (A).

Hyundai Venue. Oil Pressure Switch. Repair procedures

(2)
Remove the oil pressure switch (B).

Hyundai Venue. Oil Pressure Switch. Repair procedures

5.
Installation is in the reverse order of removal.
Inspection
1.

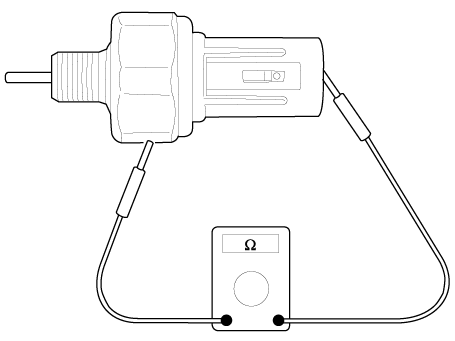

Check the continuity between the terminal and the body with an ohmmeter.
If there is no continuity, replace the oil pressure switch.

Hyundai Venue. Oil Pressure Switch. Repair procedures

2.

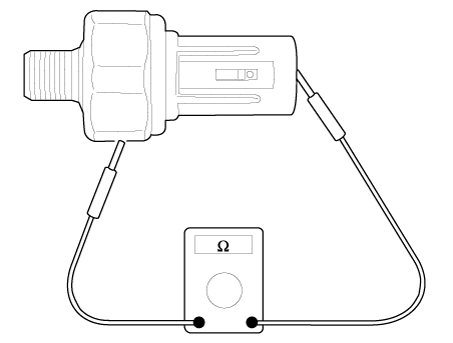

Check the continuity between the terminal and the body when the fine wire is pushed.
If there is continuity even when the fine wire is pushed, replace the switch.

Hyundai Venue. Oil Pressure Switch. Repair procedures

3.
If there is no continuity when a 49.0kpa (0.5kg/cm², 7.1psi) vacuum is applied through the oil hole, the switch is operating properly.
Check for air leakage. If air leaks, the diaphragm is broken.
Replace it.
