Removal and Installation
1.
Remove the engine cover.
2.
Disconnect the battery negative terminal.
3.
Remove the air duct and air cleaner assembly.
(Refer to Intake and Exhaust Manifold System - "Air Cleaner")
4.
Remove the engine wire harness connectors and wire harness clamps from cylinder head and the intake manifold.

Hyundai Venue. Intake Manifold. Repair procedures
5.

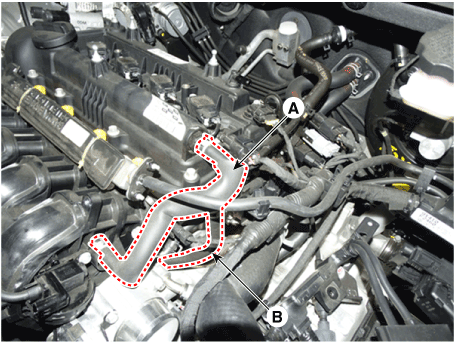

Disconnect the PCV hose(A), vacumm hose(B).

Hyundai Venue. Intake Manifold. Repair procedures
6.

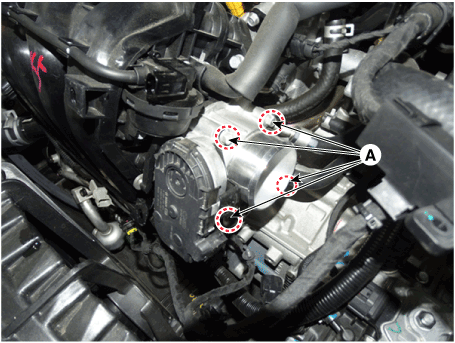

Loosen the throttle body fixed bolts (A).
Tightening torque :
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

Hyundai Venue. Intake Manifold. Repair procedures
7.
Remove the oil level gauge assembly.
(Refer to Lubrication System - "Oil Level Gauge & Pipe")
8.

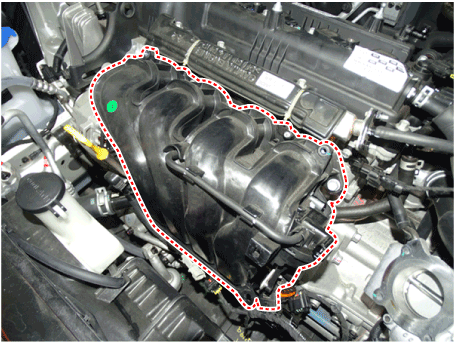

Remove the Intake Manifold (A).
Tightening torque :
18.6 - 23.5 N.m (1.9 - 2.4 kgf.m, 13.7 - 17.4 lb-ft)

Hyundai Venue. Intake Manifold. Repair procedures

Hyundai Venue. Intake Manifold. Repair procedures
•
When installing, replace with new gaskets.
•

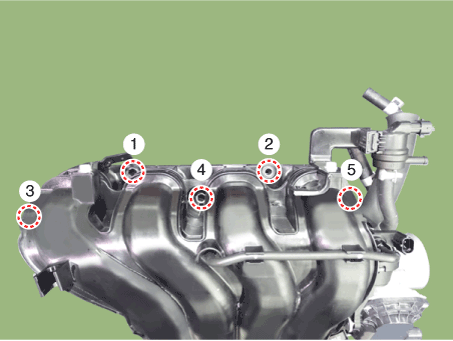

When installing the intake manifold, tighten the Bolts & nuts with pre-torque first and then tighten the Bolts & nuts with specified torque in the sequence shown.

Hyundai Venue. Intake Manifold. Repair procedures
9.
Install in the reverse order of removal.
