Hyundai Venue: Controller / Heater & A/C Control Unit (DATC). Components and components location

Hyundai Venue (QX) (2020-2025) Service Manual / Heating, Ventilation and Air Conditioning / Controller / Heater & A/C Control Unit (DATC). Components and components location

Components

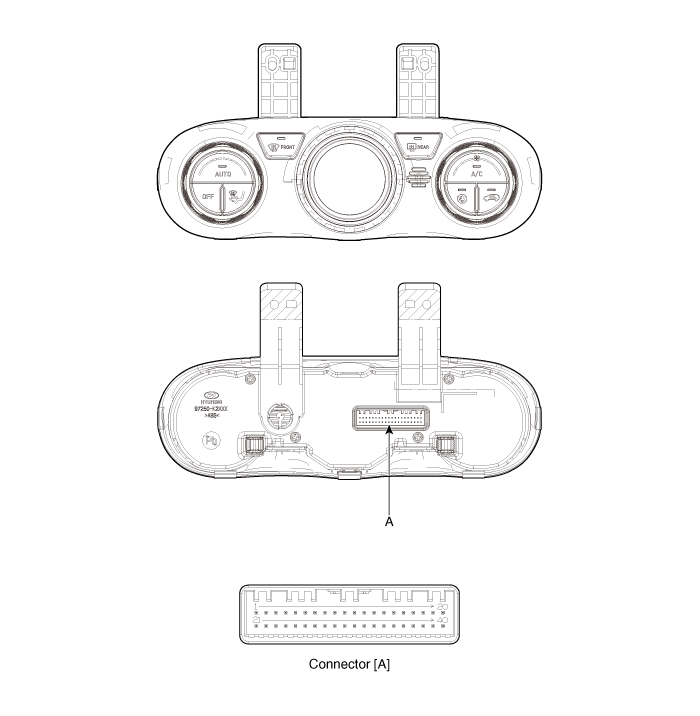

Hyundai Venue. Heater & A/C Control Unit (DATC). Components and components location

Connector [A]

Pin NO	Function	Pin NO	Function
1	Battery (+)	21	IGN2
2	ISG B+	22	IGN1
3	ILL+ (TAIL)	23	Blower motor (+)
4	Sensor REF (+5V)	24	Photo sensor (-)
5	Mode actuator feedback	25	-
6	Temperature actuator feedback	26	-
7	Intake actuator feedback	27	-
8	EVAP Sensor (+)	28	-
9	AMB Sensor (+)	29	-
10	Mode actuator (Vent)	30	PTC Relay 1
11	Mode actuator (Defrost)	31	-
12	Temperature actuator (Cool)	32	-
13	Temperature actuator (Warm)	33	C_CAN High
14	Intake actuator (Fresh Air)	34	C_CAN Low
15	Intake actuator (Recirculated Air)	35	Power mosfet (Drain feed back)
16	HTD (Rear defog indicator)	36	Power mosfet (Gate)
17	Rear defog switch	37	ECV (+)
18	-	38	ECV (-)
19	-	39	Sensor ground
20	ILL- (RHEO)	40	Ground
