Hyundai Venue: Front Door / Front Door Belt Outside Weatherstrip. Repair procedures

Hyundai Venue (QX) (2020-2025) Service Manual / Body (Interior and Exterior) / Front Door / Front Door Belt Outside Weatherstrip. Repair procedures

Replacement

1.	Pull down the front door window glass to the lowest level by pressing the power window glass switch.

2.	Remove the outside rear view mirror. (Refer to Mirror - "Outisde Rear View Mirror")

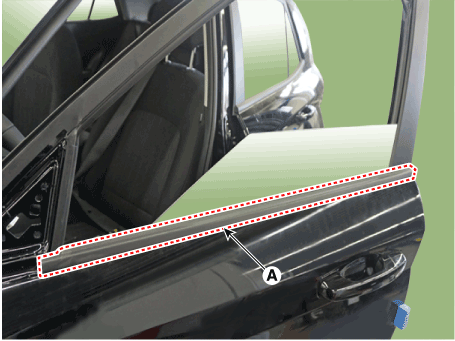

3.	Using a remover or flat-tip screwdriver and remove the front door belt outside weatherstrip (A).

To install, reverse removal procedure.

•	Replace any damaged clips (or pin-type retainers).
