Hyundai Venue: Engine And Transmission Assembly / Engine Room Under Cover. Repair procedures

Hyundai Venue (QX) (2020-2025) Service Manual / Engine Mechanical System / Engine And Transmission Assembly / Engine Room Under Cover. Repair procedures

Removal and Installation
1.

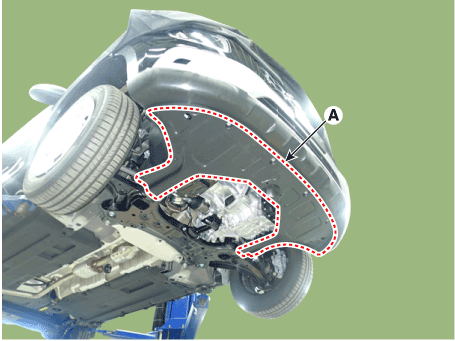

Remove the engine room under cover (A).
Tightening torque :
3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb-ft)

Hyundai Venue. Engine Room Under Cover. Repair procedures

2.
Installation is reverse order of removal.
