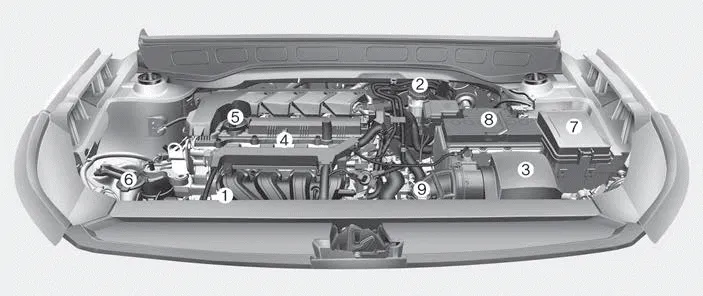

1. Engine coolant reservoir
2. Brake/clutch fluid reservoir
3. Engine air filter
4. Engine oil dipstick
5. Engine oil filler cap
6. Windshield washer fluid reservoir
7. Engine room junction block
8. Battery
9. Radiator cap
1. Instrument cluster 2. Horn 3. Key ignition switch/ Engine Start/Stop button 4. Infotainment system 5. Hazard warning flasher switch 6. Manual climate control system/ Automatic climate control system 7.
Dimensions Engine Bulb Wattage
Inspection 1. Turn the ignition switch OFF. 2. Disconnect the mode control actuator connector. 3. Verify that the mode control actuator operates to the defrost mode when connecting 12V to terminal 3 and grounding terminal 4.
Inspection 1. Connect the battery voltage and check the blower motor rotation. 2. If the blower motor does not operate well, substitute with a known-good blower motor and check for proper operation.
