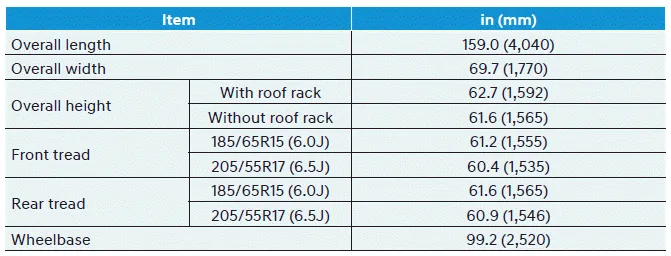

Dimensions

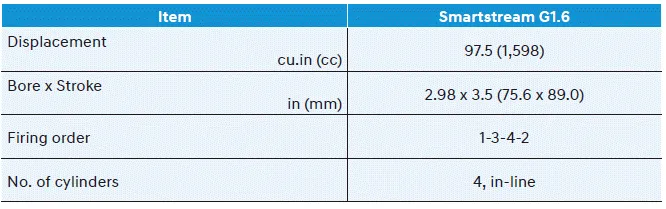

Engine

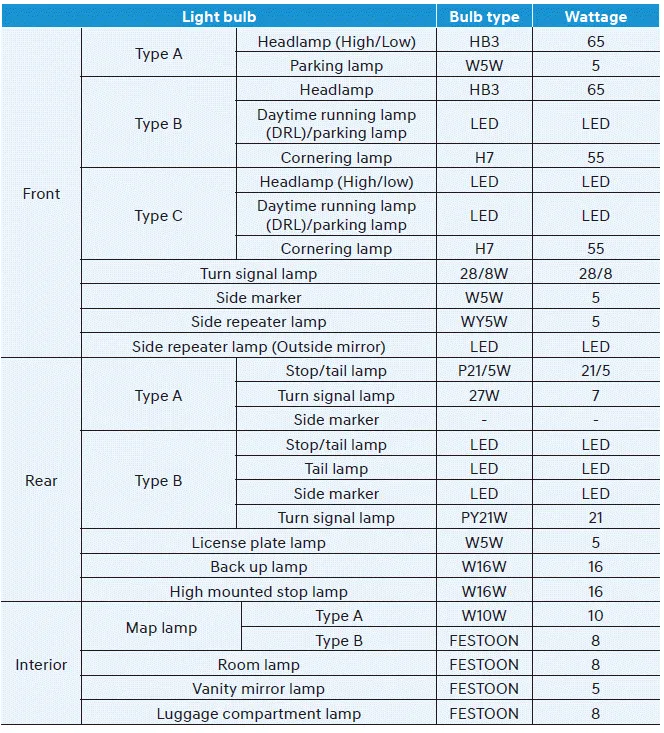

Bulb Wattage

1. Engine coolant reservoir 2. Brake/clutch fluid reservoir 3. Engine air filter 4. Engine oil dipstick 5. Engine oil filler cap 6. Windshield washer fluid reservoir 7.
NOTICE It is permissible to add 3 psi to the standard tire pressure specification if colder temperatures are expected soon. Tires typically loose 1psi (7kPa) for every 12°F temperature drop.
Inspection 1. Turn the ignition switch OFF. 2. Disconnect the mode control actuator connector. 3. Verify that the mode control actuator operates to the defrost mode when connecting 12V to terminal 3 and grounding terminal 4.
Inspection 1. Turn the ignition switch OFF. 2. Disconnect the intake actuator connector. 3. Verify that the intake actuator operates to the fresh position when connecting 12V to terminal 3 and grounding terminal 4.
