Hyundai Venue: Timing System / Drive Belt Tensioner. Repair procedures

Hyundai Venue (QX) (2020-2025) Service Manual / Engine Mechanical System / Timing System / Drive Belt Tensioner. Repair procedures

Removal and Installation

1.	Remove the drive belt. (Refer to Timing System - "Dreve Belt")

2.	Remove the alternator. (Refer to Engine Electrical System - "Alternator")

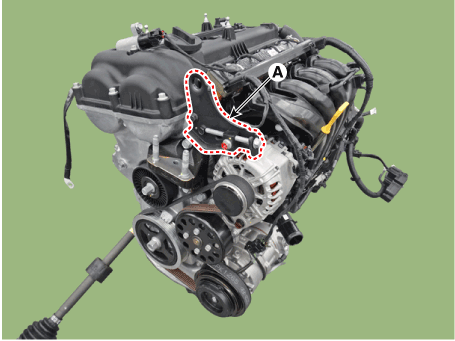

Remove the alternator bracket (belt tunsioner) (A).

Tightening torque :

19.6 - 26.5 N.m (2.0 - 2.7 kgf.m, 14.5 - 19.5 lb-ft)

Hyundai Venue. Drive Belt Tensioner. Repair procedures

4.	Installation is reverse order of removal.
