Hyundai Venue: Parking Distance Warning (PDW) / Description and operation

Hyundai Venue (QX) (2020-2024) Service Manual / Advanced Driver Assistance System (ADAS) / Parking Distance Warning (PDW) / Description and operation

System Overview
Parkin Distance Warning (PDW) is an electronic driving aid that warns the driver to be cautious while parking or driving at low speed. The sensor uses ultrasonic waves to detect objects within proximity of the vehicle.

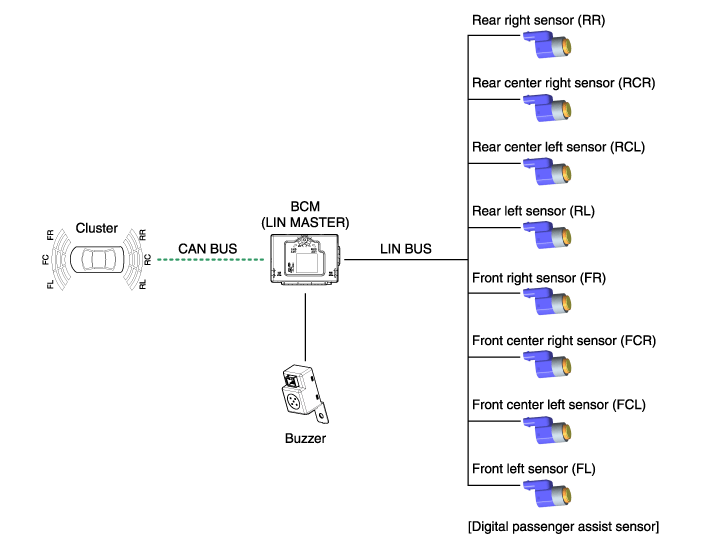

PDW consists of four PDW sensors which are detecting the obstacles and transmit the result separated into three warning levels, the first, second and third to BCM by Lin communication. BCM decides the alarm level by the transmitted communication message from the slave sensors, and then operates the buzzer or transmits the data for display.

Hyundai Venue. Description and operation

System Operation Specification.
1.
INIT mode
(1)
System initializing time is 500ms after IGN1+ R Gear.
(2)
PDW recognizes LID and sets the sensor ID up during initialization.
(3)
PDW activates each sensor and then executes the diagnosis after finishing initialization of BCM
(4)
If the diagnosis is completed and sensor does not send an error message, “PDW Startling Buzzer” is normally worked.
(5)
If failure is received from any sensors, PDW Starting Buzzer” does not work but the failure alarm is operated for a moment.
If you have display option, warning sign is also shown on it.
(6)
Buzzer for sensor failure is operated once, but the sensor failure state is shown in display until the failure is repaired.
2.
NORMAL Mode
(1)
Lin communication starts and keeps the routine after IGN1 ON+R gear
(2)
BCM sends a message once to each sensor for operating request to check the initial status of the system and four sensors response all at once. At this time, if there is no problem, the alarm starts after 500ms of R gear shifting at 300ms intervals.
(3)
After initialization, normal mode starts 100ms later after finishing alarm output.
(4)
Alarm for obstacles is divided into 3 levels.
The first and second are intermittent sound, and the third alarms continuously
(5)
The efficient vehicle speed of PDW operation is below 10Km/h.
(6)
Refer to ‘Digital PAS Project LIN communication’ for the more detailed communication specification.
Sensing Area
1.
Measurement condition – PVC pole (diameter 75mm, length 1m), normal temperature
2.
Distance range detected objects (Measured directly in front of sensor)
61cm(24.0in) - 120cm(47.2in) : ± 15cm(5.9in)
31cm(12.2in) - 60cm(23.6in): ± 15cm(5.9in)
Less than 30cm(11.8in) : ± 10cm(3.9in)

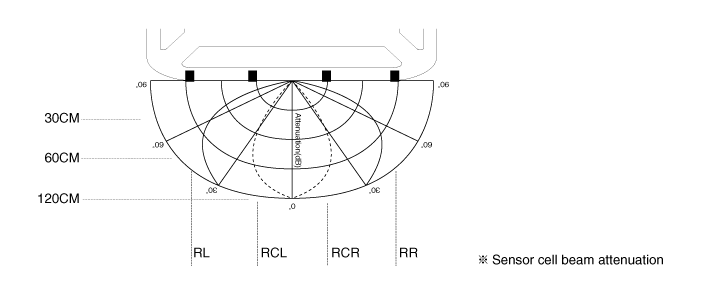

Horizontal Sensing Area

Hyundai Venue. Description and operation

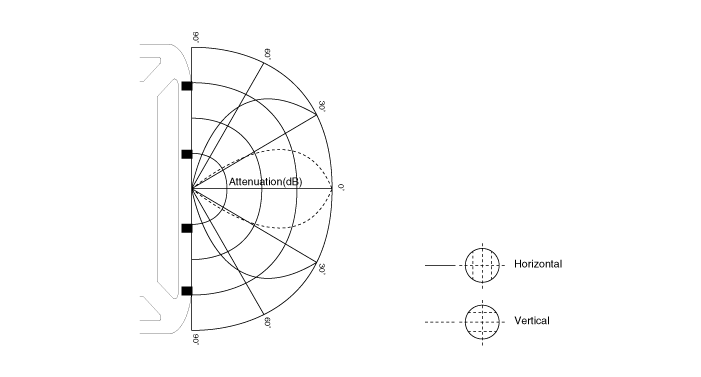

Vertical Sensing Area

Hyundai Venue. Description and operation

Distance Measurement
Direct Measurement
Transmission and Reception are executed with one sensor
(RL, RCL, RCR, RR each sensor execution)

Hyundai Venue. Description and operation

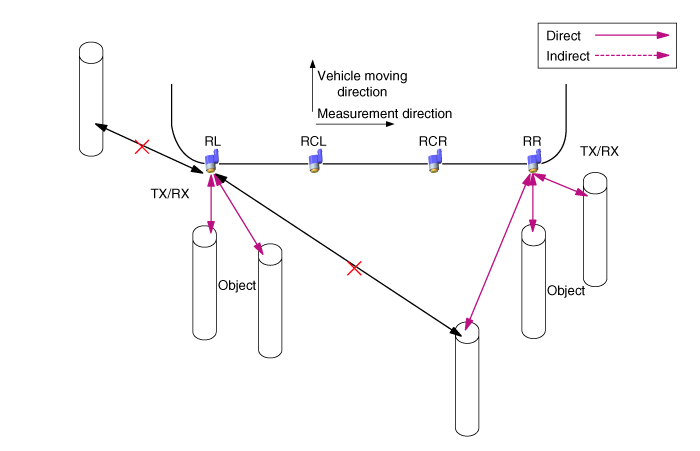

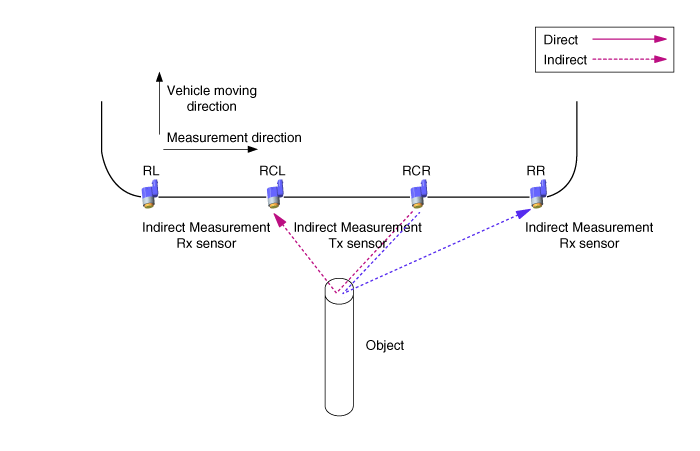

Indirect Measurement
(RCL → RL, RCL → RCR, RCR → RCL, RCR → RR Execution in order)
With two or three sensors, one of them sends the transmission and the others get the reception.

Hyundai Venue. Description and operation

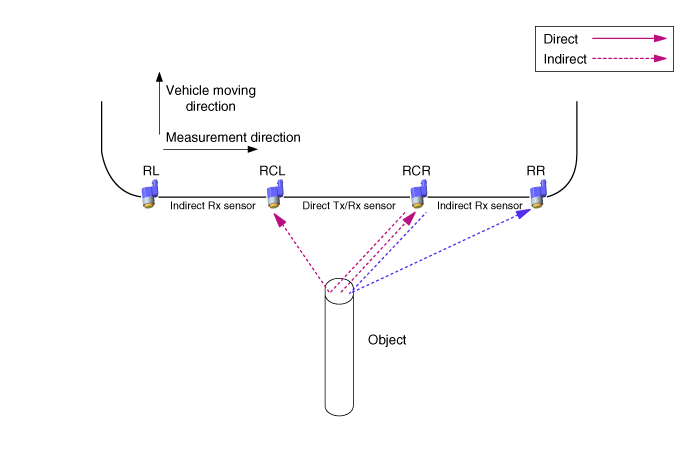

Direct and Indirect Measurement at once
With two or three sensors, the one sensor performs both transmission and reception, and the others perform only reception.

Hyundai Venue. Description and operation

PDW Alarm System
When the PDW sensor detects the object, warning is operated by audible alarm device as like buzzer. PDW sensor sends data to BCM via LIN communication and BCM implements audible warning for each PDW SENSOR by priority. And it performs a role of gateway only when it sends visible alarm device such as Cluster.
–
Sensor buzzer/display information processing method of BCM In case of RL/RR sensor information, the BCM handles each sensor information directly about Display and buzzer output function. Buzzer output of CL/CR sensor, BCM handles center combination information by priority both sensor.
System Operation Spec

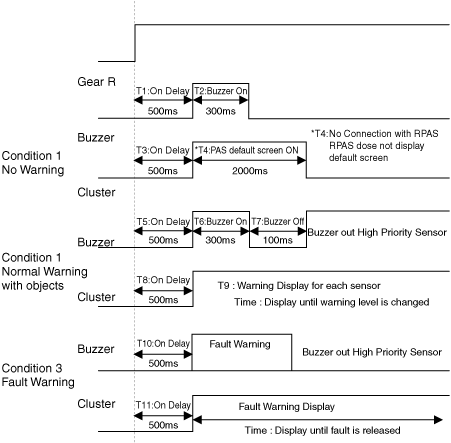

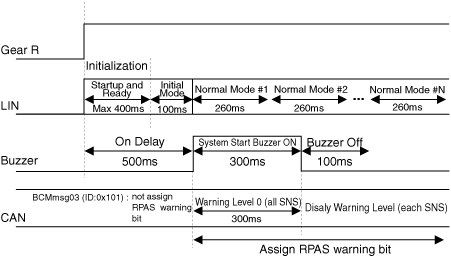

When the system has the power (after IGN ON and R gear), MICOM checks every sensor channel. In case it finds any error, it gives off the buzzer for 300ms after 500ms.If an error is found even in a sensor, it gives off the buzzer corresponding to the faulty sensor, instead of initial starting alarm. The operation to enter the normal mode is as follows.

Hyundai Venue. Description and operation

With the R gear put in the car, the system is operated as follows.

Hyundai Venue. Description and operation

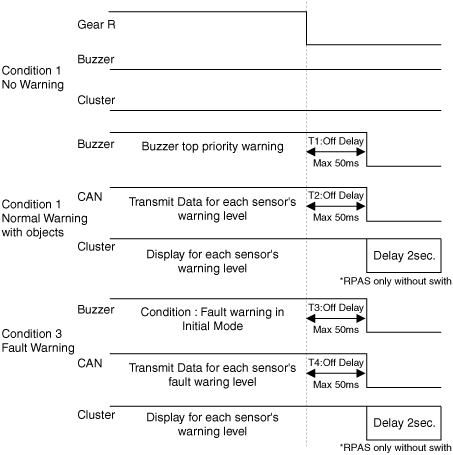

With the R gear released, the system is operated as follows.

Hyundai Venue. Description and operation

※ The acceptable error range on waveform is ±10%.

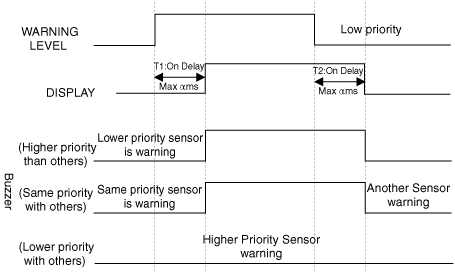

Alarm Output Specification Classified by Distance Between Sensors
Condition logic according to priority of alarm level is as below. (the identical sensor)

Hyundai Venue. Description and operation

*α value definition
1.
low priority sensor off : α = 0ms
2.
low priority sensor is 1st warning level : α < 340ms
3.
low priority sensor is 2nd warning level : α < 170ms
*β value definition
4.
low priority sensor is 1st warning level : β = 1700ms
5.
low priority sensor is 2nd warning level : β = 1700ms
6.
low priority sensor is 3rd warning level : β = 700ms

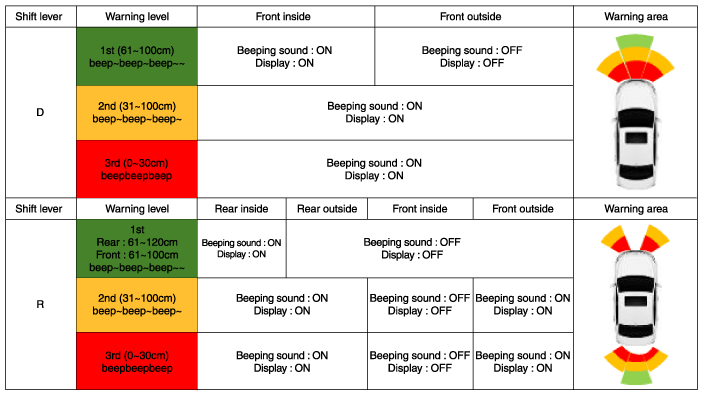

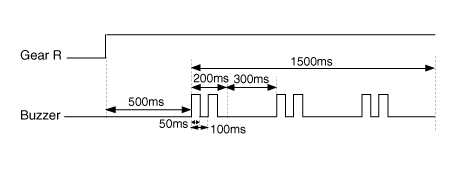

Alarm control by sensing distance is as follows.
7.
First warning area (61cm-120cm)

Hyundai Venue. Description and operation
8.
Second warning area (31cm-80cm)

Hyundai Venue. Description and operation
9.
Third warning area (less than 30cm)

Hyundai Venue. Description and operation
10.
Alarm fo ultrasonic sensor
If one or more front/rear paking assistance sensor have any fault, alarm will sound and warning message will be displayed (cluster).
1)
Alarm sound

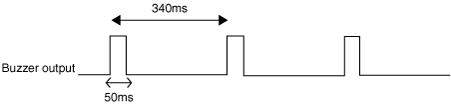

Hyundai Venue. Description and operation
2)

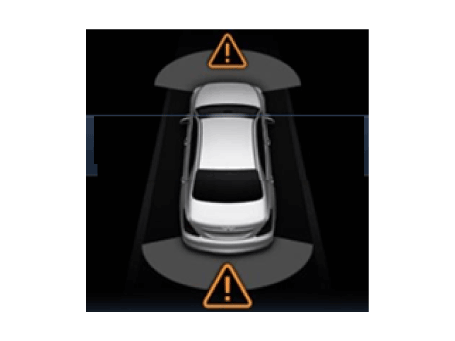

Alarm message

Hyundai Venue. Description and operation

Hyundai Venue. Description and operation
Displayed image and warning message may vary depending on the vehicle model.
Visible Alarm Indicator Specification
When the gear shifts to R, the cluster controls the indicator as the following picture.
When the system detects an object, it immediately turns on the indicator. If an object disappears while the PDW detecting operation, the indicator remains on for 2 sec. before being turned off.
(But when it turns third step alarm to No alarm status, it lights third step alarm for two second and turns out.)

Hyundai Venue. Description and operation

–
It shows only the detecting position of obstacles.
–
In third level alarm, indicator flickers at intervals of a second.
–
In normal alarm mode, integrated display of RCR/RCL
Communication Standard
This section defines the communication between PDW and BCM.
PDW send a detecting result of object and sensor diagnosis result to BCM according to this document, and BCM takes a role to issue an alarm.
Indicator shows the transmitted position and alarm data, in the alarm mode, it finds the nearest DATA and alarms the nearest DATA first.
(Ex. In case, RL isthe first-step alarm and RR is the third step, RR alarm has priority.)

    Components and components location

    Component Location 1. Integrated body control unit (IBU) 2. Parking distance warning-forward (PDW-F) sensor ※ PDW(parking distance warning unit) function is included in the IBU...

    Parking Distance Warning (PDW) Sensor. Schematic diagrams

    ..
