Hyundai Venue: Starter / Components and components location

Hyundai Venue (QX) (2020-2025) Service Manual / Engine Electrical System / Starting System / Starter / Components and components location

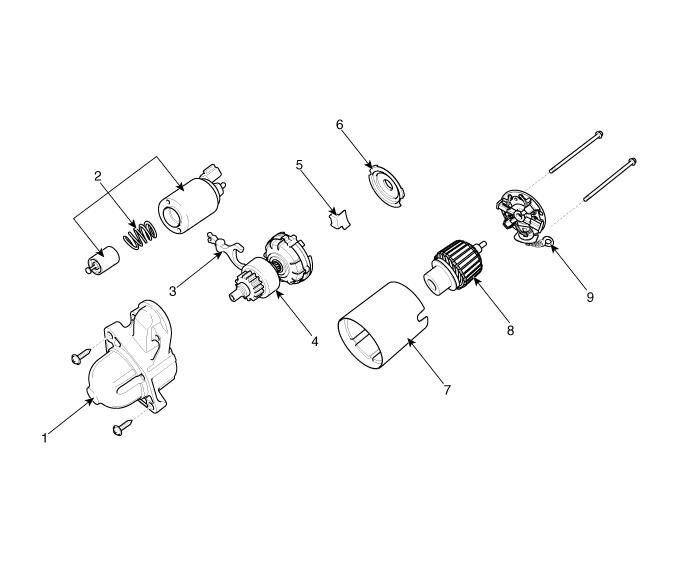

Components

Hyundai Venue. Components and components location

1. Front bracket assembly
2. Magnet switch assembly
3. Lever
4. Reducer assembly
5. Lever stop
6. Gasket sheet
7. Yoke assembly
8. Armature assembly
9. Brush holder assembly

    Specifications

    Specification Item Specification Rated voltage 12V, 0.9 kW The number of pinion teeth 10 Performance [No-load, 11...

    Schematic diagrams

    ..
