Hyundai Venue (QX) (2020-2025) Service Manual / Body Electrical System / Lighting System / Components and components location

Component Location

Hyundai Venue. Components and components location

1. Head Lamp (Low, High)
2. DRL/Position lamp
3. Static bending light (SBL)
4. DRL & Position Lamp

5. Fog Lamp
6. Side Repeater Lamp
7. Turn Signal Lamp
8. Overhead Console Lamp

Hyundai Venue. Components and components location

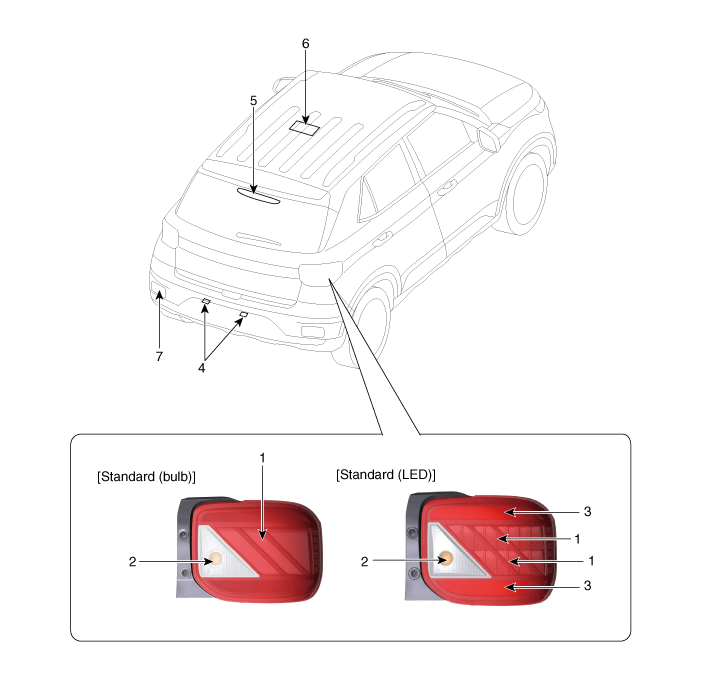

1. Tail/Stop Lamp
2. Turn Signal Lamp
3. Tail Lamp
4. License Plate Lamp

5. High Mounting Stop Lamp
6. Room Lamp
7. Back up Lamp

Specifications
