Hyundai Venue: Tires/Wheels / Wheel. Repair procedures

Hyundai Venue (QX) (2020-2024) Service Manual / Suspension System / Tires/Wheels / Wheel. Repair procedures

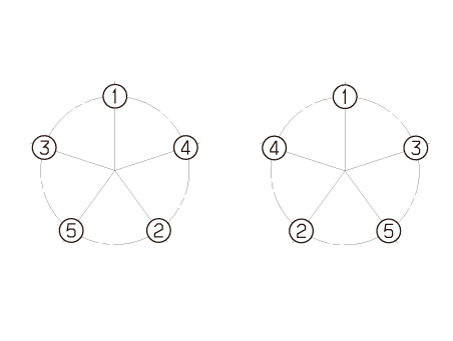

Hub Nut Tightening Sequence

Tighten the hub nuts as follows.

Tightening torque :

107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb-ft)

Hyundai Venue. Wheel. Repair procedures

•	When using an impact gun, final tightening torque should be checked using a torque wrench.

Run out inspection

1.	Jack up the vehicle.

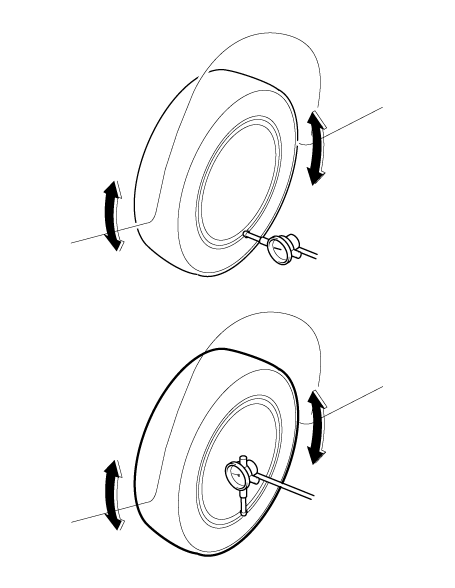

Measure the wheel Run-out by using a dial indicator as illustration below.

Run-out	Aluminum	Steel
Radial mm (in.)	Below 0.3 (0.012)	Below 1.4 (0.055)
Lateral mm (in.)	Below 0.3 (0.012)	Below 0.9 (0.035)

3.	If measured value exceeds the standard value, replace the wheel.

Alignment. Repair procedures-revised

Front Wheel Alignment • When using a commercially available computerized wheel alignment equipment to inspect the front wheel alignment, always position the vehicle on a level surface with the front wheels facing straight ahead...

Tire. Repair procedures

Tire Wear • Using tires and wheel other than the recommended sizes could cause unusual handling characteristics and poor vehicle control, resulting in a serious accident...
