Removal and Installation
1.
Disconnect the battery negative terminal.
2.
Loosen the drain plug, and drain the engine coolant. Remove the radiator cap to drain with speed.
3.
Remove the air cleaner assembly.
(Refer to Intake and exhaust system - "Air Cleaner")
4.
Disconnect the water temperature sensor connector.
(Refer to Engine Control / Fuel System - "Engine Control System")
5.

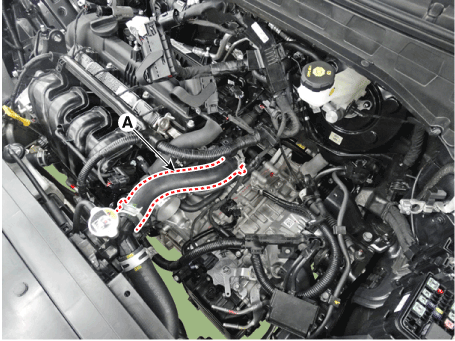

Disconnect the radiator upper hose (A).

Hyundai Venue. Water Temperature Control Assembly. Repair procedures

6.

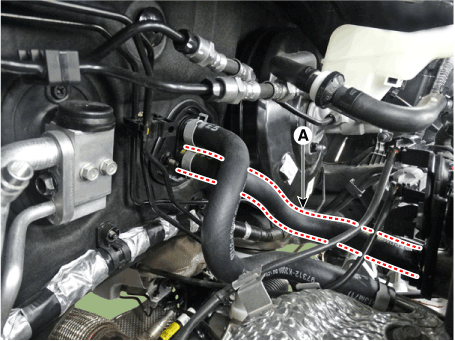

Remove the heater hose(A).

Hyundai Venue. Water Temperature Control Assembly. Repair procedures

7.

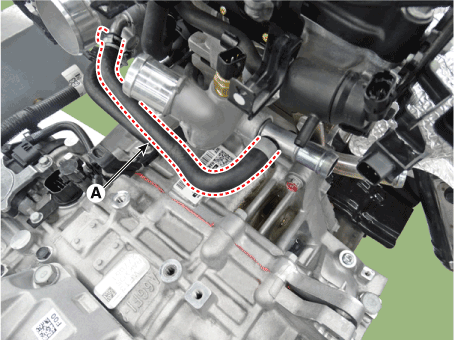

Disconnect the coolant hose(A).

Hyundai Venue. Water Temperature Control Assembly. Repair procedures

8.

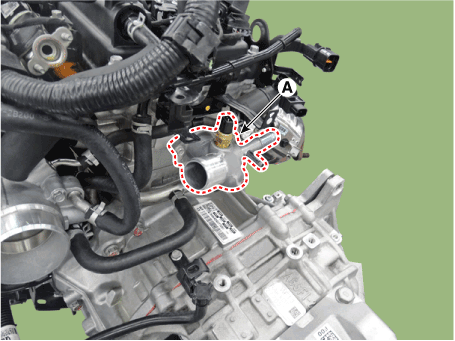

Remove the water temperature control assembly (A).
Tightening torque :
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 10.1 lb-ft)

Hyundai Venue. Water Temperature Control Assembly. Repair procedures

9.
Remove the intake manifold.
(Refer to Intake and Exhaust System - "Intake Manifold")
10.

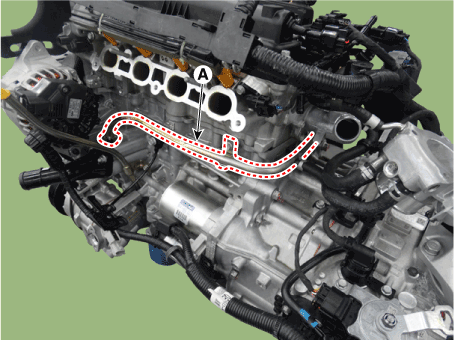

Remove the water pipe (A).
Tightening torque :
M6 bolt:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)
M8 bolt:
18.6 - 23.5 N.m (1.9 - 2.4 kgf.m, 13.7 - 17.4 lb-ft)

Hyundai Venue. Water Temperature Control Assembly. Repair procedures

11.
Install in the reverse order of removal.
