Hyundai Venue: Cooling System / Water pump. Repair procedures

Hyundai Venue (QX) (2020-2025) Service Manual / Engine Mechanical System / Cooling System / Water pump. Repair procedures

Removal
1.
Drain the coolant.
(Refer to Cooling System - "Coolant")
2.
Remove the drive belt.
(Refer to Timing System - "Drive Belt")
3.

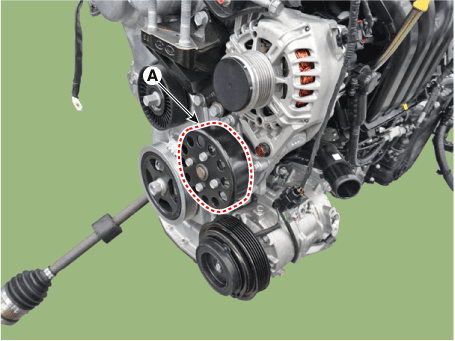

Remove the water pump pulley (A).

Hyundai Venue. Water pump. Repair procedures
4.
Remove the water pump (A).

Hyundai Venue. Water pump. Repair procedures
Inspection
1.
Check each part for cracks, damage or wear, and replace the coolant pump assembly if necessary.
2.
Check the bearing for damage, abnormal noise and sluggish rotation, and replace the coolant pump assembly if necessary.
3.
Check for coolant leakage. If coolant leaks from hole, the seal is defective. Replace the coolant pump assembly and gasket.
Hyundai Venue. Water pump. Repair procedures
•
A small amount of "weeping" from the bleed hole is normal.
Installation
1.

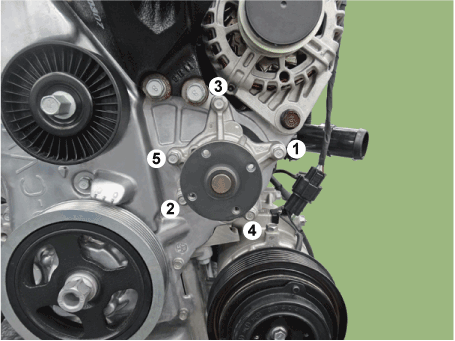

Install the water pump (A) and a new gasket with the bolts.
Tighten the bolts with the order blow.
Tightening torque :
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

Hyundai Venue. Water pump. Repair procedures
2.
Install the water pump pulley (A) with the four bolts.
Tightening torque :
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

Hyundai Venue. Water pump. Repair procedures

Hyundai Venue. Water pump. Repair procedures
•
Tighten the bolts diagonally.
3.
Install the drive belt.
(Refer to Timing System - "Drive Belt")
4.
Fill with engine coolant.
(Refer to Cooling System - "Coolant")
5.
Start engine and check for leaks.
6.
Recheck engine coolant level.

    Water pump. Components and components location

    ..

    Water pump. Troubleshooting

    Troubleshooting Symptoms Possible Causes Remedy Coolant leakage • From the bleed hole of the water pump Visually check • Check leaks after about ten-minute warming up...
