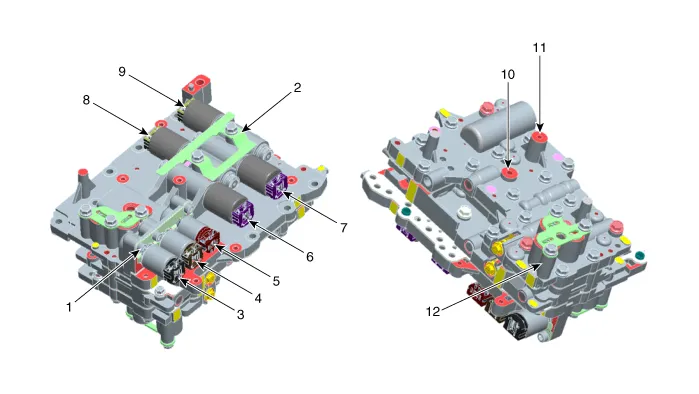

Components Location

Hyundai Venue. Valve Body. Components and components location

1. Solenoid valve support bracket
2. Solenoid valve support bracket (Directly solenoid)
3. Line Pressure Control Solenoid Valve
4. Torque Convert Control Solenoid Valve (T/CON)
5. ON/OFF solenoid valve
6. Overdrive Clutch Control Solenoid Valve (OD/C)
7. Underdrive Brake Control Solenoid Valve (UD/B)
8. 35R Clutch Control Solenoid Valve (35R/C)
9. 26 Brake Control Solenoid Valve (26B)
10. LR/B pressure flow hole
11. UD/B pressure flow hole
12. Accumulator

    Valve Body. Description and operation

    Description The valve body is essential to automatic transaxle control and consists of various valves used to control the oil feed from the oil pump...

    Valve Body. Repair procedures

    Replacement    • If necessary replace the valve body, hydraulic adjustment is needed, replace the automatic transaxle assembly...
