Hyundai Venue (QX): Intake Air Temperature Sensor (IATS) / Specifications
| Specification |
|
Temperature [°C (°F)] |
Resistance (kΩ) |
|
-40 (-40) |
40.93 - 48.35 |
|
-30 (-22) |
23.43 - 27.34 |
|
-20 (-4) |
13.89 - 16.03 |
|
-10 (14) |
8.50 - 9.71 |
|
0 (32) |
5.38 - 6.09 |
|
10 (50) |
3.48 - 3.90 |
|
20 (68) |
2.31 - 2.57 |
|
25 (77) |
1.90 - 2.10 |
|
30 (86) |
1.56 - 1.74 |
|
40 (104) |
1.08 - 1.21 |
|
60 (140) |
0.54 - 0.62 |
|
80 (176) |
0.29 - 0.34 |
Description Intake Air Temperature Sensor (IATS) is included inside Manifold Absolute Pressure Sensor and detects the intake air temperature.

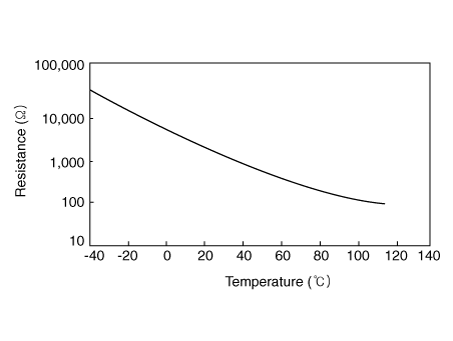

Singal Waveform
Other information:
Hyundai Venue (QX) (2020-2026) Service Manual: In-car Sensor. Description and operation
Description The In-car air temperature sensor is built in the heater & A/C control unit. The sensor contains a thermistor which measures the temperature of the inside. The signal decided by the resistance value which changes in accordance with perceived inside temperature, is delivered to heater control unit and accord
Hyundai Venue (QX) (2020-2026) Service Manual: Temperature Control Actuator. Description and operation
Description The temperature control actuator is located at the heater unit. It regulates the temperature by the procedure as follows. The signal from the control unit adjusts the position of the temperature door by operating the temperature switch.
