Hyundai Venue: Seat Electrical / Seat Heater. Schematic diagrams
Hyundai Venue (QX) (2020-2025) Service Manual / Body Electrical System / Seat Electrical / Seat Heater. Schematic diagrams

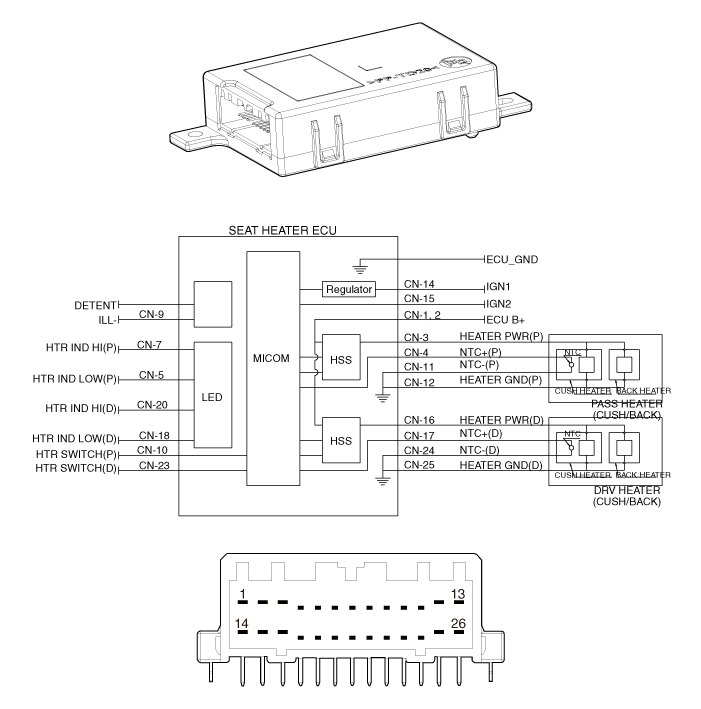

| Circuit Diagram |
[Front Seat Heater]
|
NO |
Description |
|
1 |
ECU Battery(+) |
|
2 |
ECU Battery(+) |
|
3 |
Passenger heater power |
|
4 |
Passenger NTC (+) |
|
5 |
Passenger heater indicator (Low) |
|
6 |
- |
|
7 |
Passenger heater indicator (High) |
|
8 |
- |
|
9 |
ILL (-) |
|
10 |
Passenger heater switch |
|
11 |
Passenger NTC (-) |
|
12 |
Passenger heater GND |
|
13 |
ECU GND |
|
14 |
IGN 1 |
|
15 |
IGN 2 |
|
16 |
Drive heater power |
|
17 |
Drive NTC (+) |
|
18 |
Drive heater indicator (Low) |
|
19 |
- |
|
20 |
Drive heater indicator (High) |
|
21 |
- |
|
22 |
DETENT |
|
23 |
Drive heater switch |
|
24 |
Drive NTC (-) |
|
25 |
Drive heater GND |
|
26 |
ECU GND |
Seat Heater. Components and components location
Component Location
[Front Seat Heater]
1. Seat heater unit (Assist seat
only)
2. Front seat cushion heater
3...
Seat Heater. Repair procedures
Inspection
Front Seat Heater
1.
Check for continuity and measure the resistance between terminals No
3 and No 6...
