Hyundai Venue: ESP(Electronic Stability Program) System / Schematic diagrams

Hyundai Venue (QX) (2020-2024) Service Manual / Brake System / ESP(Electronic Stability Program) System / Schematic diagrams

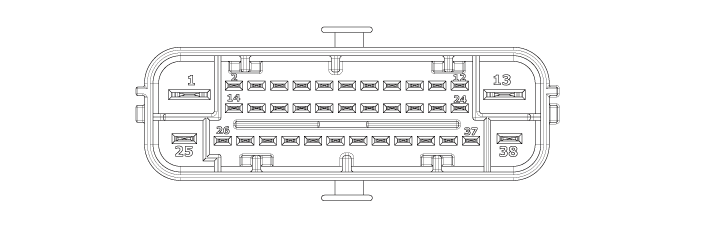

Terminal Function

Hyundai Venue. Schematic diagrams

Pin No
Description
Current (AMPS)
Resistance (mΩ)
Remark
1
 POS. BATTERY 2. (MOTOR)
 40A
 10
2
 -


3
 -


4
 C-CAN Low
 100 mA
 250
5
 C-CAN High
 100 mA
 250
6
 -


7
 P-CAN Low
 100 mA
 250
8
 P-CAN High
 100 mA
 250
9
 SENSOR REAR LEFT POWER
 150 mA
 250
10
 SENSOR REAR RIGHT POWER
 150 mA
 250
11
 SENSOR FRONT RIGHT POWER
 150 mA
 250
12
 SENSOR FRONT LEFT POWER
 150 mA
 250
13
 PUMP MOTOR GROUND
 40A
 10
14
 -


15
 CLUTCH SWITCH SIGNAL
 1.2 mA
 250
16
 -


17
 ESP ON / OFF SWITCH SIGNAL
 1.2 mA
 250
18
 -


19
 PARKING BRAKE SWITCH
 1.2 mA
 250
20
 -


21
 SENSOR REAR LEFT GROUND
 40 mA
 250
22
 SENSOR REAR RIGHT GROUND
 40 mA
 250
23
 SENSOR FRONT RIGHT GROUND
 40 mA
 250
24
 SENSOR FRONT LEFT GROUND
 40 mA
 250
25
 BATTERY (+) : SOLENOID
 30A
 10
26
 -


27
 -


28
 -


29
 -


30
 BRAKE LIGHT SWITCH
 1.2 mA
 250
31
 -


32
 IGN
 10 mA
 50
33
 -


34
 HAC/BLA SiGNAL OUTPUT
 1.2 mA
 250
35
 ESS SINGLA OUTPUT
 1.2 mA
 250
36
 -


37
 SENSOR FRONT RIGHT OUTPUT
 50 mA
 250
38
 GROUND
 30A
 10
