Hyundai Venue: Fender / Repair procedures

Hyundai Venue (QX) (2020-2025) Service Manual / Body (Interior and Exterior) / Fender / Repair procedures

Replacement

•	When removing the fender, wrap protective tape around a screwdriver or remover not to damage components

•	Put on gloves to prevent hand injuries

•	When removing the clips, use a clip remover.

1.	Remove the front bumper. (Refer to Front Bumper - "Front Bumper Cover")

2.	Remove the head lamps. (Refer to Body Electrical System - "Head Lamps")

3.	Remove the front wheel guard. (Refer to Body Side Molding - "Front Wheel Guard")

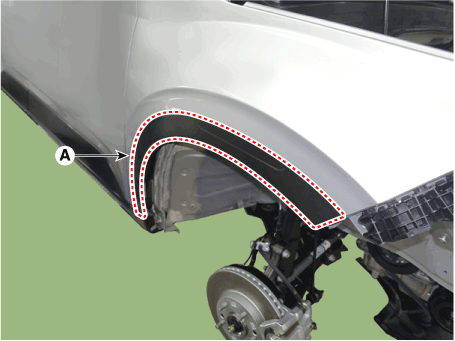

4.	Using a remover and remove the fender garnish (A).

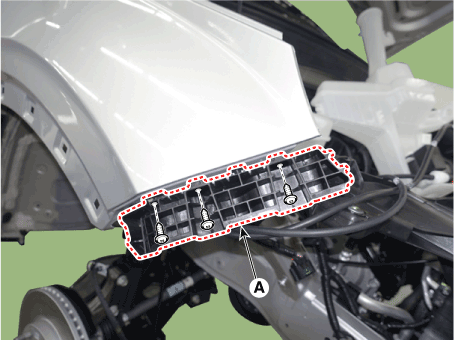

5.	Loosen the mounting screws and remove the front bumper side braket (A).

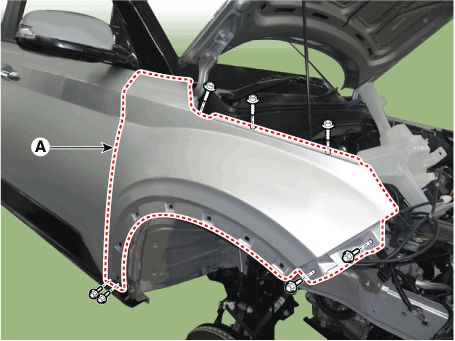

Loosen the mounting bolts and remove the fender assembly (A).

Tightening torque :

6.9 - 8.8 N.m (0.7 - 0.9 kgf.m, 5.1 - 6.5 lb-ft)

Hyundai Venue. Repair procedures

To install, reverse removal procedure.

•	Replace any damaged clips (or pin-type retainers).
