Hyundai Venue: Heated Oxygen Sensor (HO2S) / Repair procedures

Hyundai Venue (QX) (2020-2025) Service Manual / Engine Control / Fuel System / Engine Control System / Heated Oxygen Sensor (HO2S) / Repair procedures

Inspection

Wave form

Check signal waveform of HO2S using a diagnostic tool.

Specification : Refer to "Waveform"

Heater Resistance

1.	Turn the ignition switch OFF.

2.	Disconnect the knock sensor connector.

3.	Measure resistance between HO2S heater terminals 3 and 4.

Check that the resistance is within the specification.

Specification : Approximately 3.0Ω [20°C (68°F)]

Removal

1.	Turn the ignition switch OFF and disconnect the battery negative (-) terminal.

Disconnect the connector (A), and then remove the sensor (B).

Heated oxygen sensor installation :

39.2 - 49.1 N.m (4.0 - 5.0 kgf.m, 28.9 - 36.2 lb-ft)

•	Note that the SST (Part No.: 09392-1Y100 or 09392-2H100) is useful when removing the heated oxygen sensor.

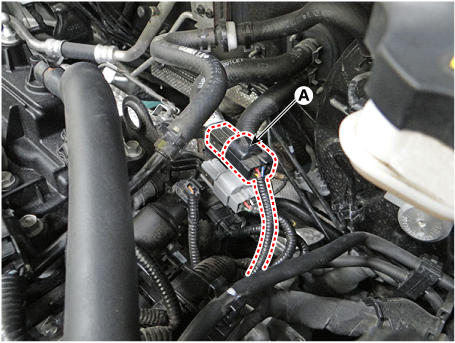

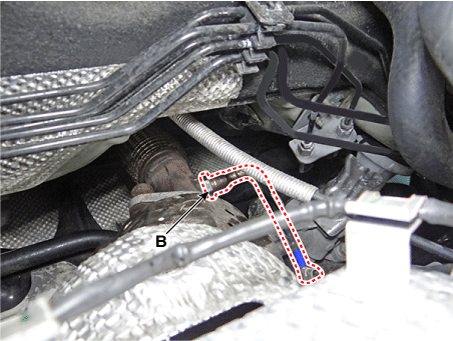

[Bank 1 / Sensor 1]

Hyundai Venue. Repair procedures

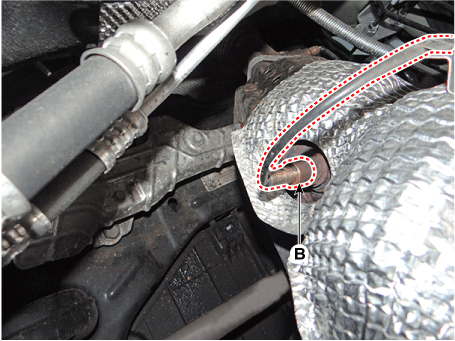

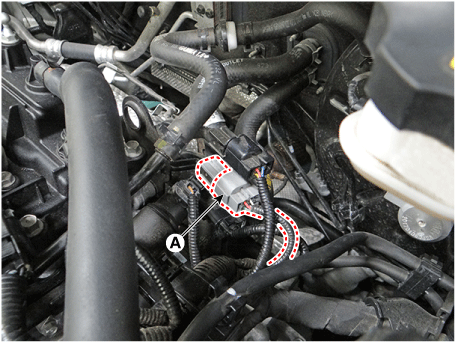

[Bank 1 / Sensor 2]

Hyundai Venue. Repair procedures

Installation

•	Install the component with the specified torques.

•	Note that internal damage may occur when the component is dropped. In this case, use it after inspecting.

•	DON’T use a cleaner, spray, or grease to sensing element and connector of the sensor because oil component in them may malfunction the sensor performance.

•	Sensor and its wiring may be damaged in case of contacting with the exhaust system (Exhaust Manifold, Catalytic Converter, and so on).

1.	Install in the reverse order of removal.
