Hyundai Venue: Scheduled Maintenance Services / Normal Maintenance Schedule
Hyundai Venue (QX) (2020-2025) Owners Manual / Maintenance / Scheduled Maintenance Services / Normal Maintenance Schedule

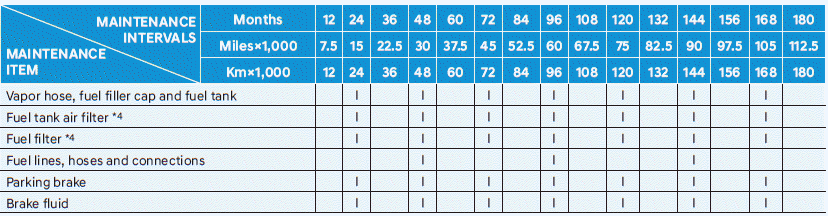

I : Inspect and if necessary, adjust, correct, clean or replace.
R : Replace or change.
*1 : The drive belt should be replaced when cracks occur or tension is reduced excessively.
*2 : If TOP TIER Detergent Gasoline is not available, one bottle of additive is recommended. Additives are available from your authorized HYUNDAI dealer along with information on how to use them. Do not mix other additives.
Scheduled Maintenance Services
Follow Normal Maintenance Schedule if the vehicle is usually operated where none
of the following conditions apply. If any of the following conditions apply, you
must follow the Maintenance Under Severe Usage Conditions...
Maintenance Under Severe Usage Conditions
The following items must be serviced more frequently on cars normally used under
severe driving conditions. Refer to the chart below for the appropriate maintenance
intervals...
