Hyundai Venue: Smart Key / Locking your vehicle

Hyundai Venue (QX) (2020-2024) Owners Manual / Convenient Features / Accessing Your Vehicle / Smart Key / Locking your vehicle

Hyundai Venue. Locking your vehicle

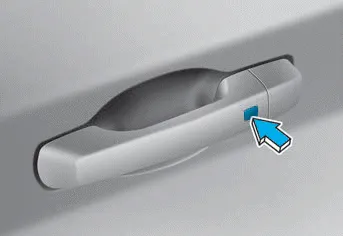

To lock your vehicle using the door handle button or the Smart Key:

1. Close all doors, hood and liftgate.

2. Either press the door handle button or press the Door Lock button (1) on the smart key.

3. The hazard warning lights will blink and the chime will sound once.

4. When the doors are locked, the indicator light on the central door lock/unlock switch will be illuminated.

Information

The door handle button will only operate when the smart key is within 28~40 inches (0.7~1 m) from the outside door handle.

Note that you cannot lock your vehicle using the door handle button if any of the following occur:

  • The Smart Key is in the vehicle.
  • The Engine Start/Stop button is in ACC or ON position.
  • Any of the doors are open except for the liftgate.

WARNING

Do not leave the Smart Key in your vehicle with unsupervised children. Unattended children could press the Engine Start/Stop button and may operate power windows or other controls, or even make the vehicle move, which could result in serious injury or death.
