Hyundai Venue (QX): Hydraulic System / Line Pressure Control Solenoid Valve (LINE_VFS). Components and components location

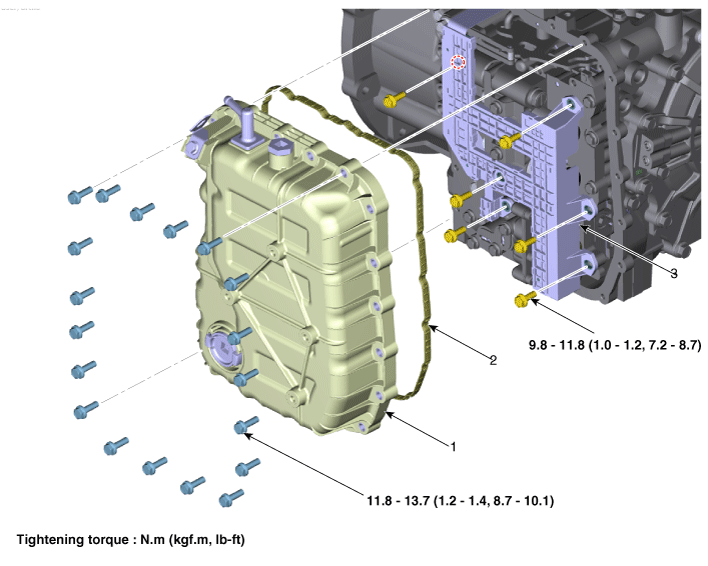

| Component Location (1)_Valve Body Cover |
| 1. Valve Body Cover 2. Valve Body Cover Gasket 3. Solenoid Valve Connector |

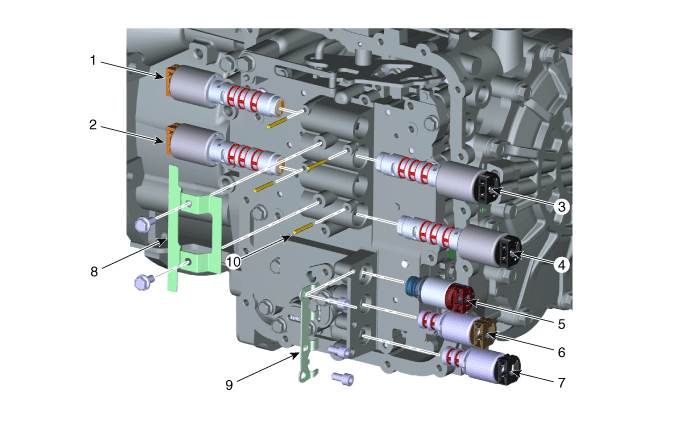

| Component Location (2)_Solenoid Valve |
| 1. 26 Brake Control Solenoid
Valve 2. 35R Clutch Control Solenoid Valve 3. Underdrive Brake Control Solenoid Valve 4. Overdrive Clutch Control Solenoid Valve 5. ON/OFF Solenoid Valve 6. Torque Converter Control Solenoid Valve (Damper Clutch Control Solenoid Valve) 7. Line Pressure Control Solenoid Valve 8. Support Bracket (Direct Control Solenoid Valve) 9. Support Bracket (Indirect Control Solenoid Valve) 10. Roller |
Specifications ▷ Control type : Normally high type Shape Items Specifications Control current (voltage) [mA] 0 - 850 Supply pressure [kpa (kgf/cm², psi)] 539.
Inspection • Refer to the DTC manual for the check procedure.
