Hyundai Venue: Air Conditioning System / In-car Sensor. Repair procedures
Hyundai Venue (QX) (2020-2024) Service Manual / Heating, Ventilation and Air Conditioning / Air Conditioning System / In-car Sensor. Repair procedures
| Diagnosis With GDS |
| 1. |
The heating, ventilation and air conditioning can be quickly diagnosed
failed parts with vehicle diagnostic system (GDS).
※ The diagnostic system (GDS) provides the following information.
(1) Self diagnosis : Checking the failure code (DTC) and display.
(2) Current data : Checking the system input/output data state.
(3) Actuation test : Checking the system operation condition.
(4) Additional function : Other controlling such as he system option
and zero point adjustment.
|
| 2. |
Select the 'Car model' and the system to be checked in order to check
the vehicle with the tester.
|
| 3. |

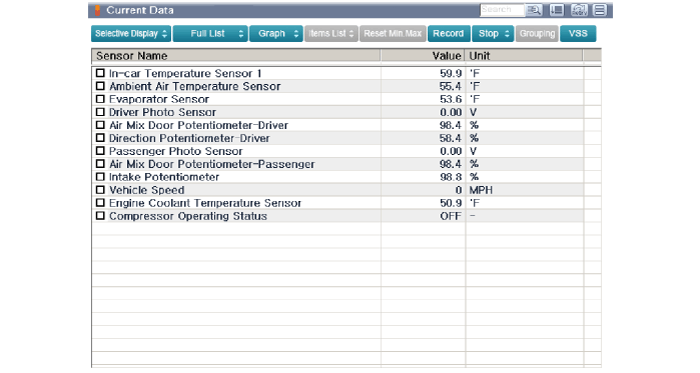

Select the 'Current data' menu to search the current state of the input
/ output data.
The input / output data for the sensors corresponding to the In-car
Sensor can be checked.
|
In-car Sensor. Description and operation
Description
The In-car air temperature sensor is built in the heater & A/C control unit.
The sensor contains a thermistor which measures the temperature of the inside...
Photo Sensor. Description and operation
Description
The photo sensor is located at the center of the defrost nozzles.
The photo sensor contains a photovoltaic (sensitive to sunlight) diode...
