Hyundai Venue: Hood / Hood Latch. Repair procedures

Hyundai Venue (QX) (2020-2024) Service Manual / Body (Interior and Exterior) / Hood / Hood Latch. Repair procedures

Replacement
1.
Remove the front bumper cover.
(Refer to Front Bumper - "Front Bumper Cover")
2.

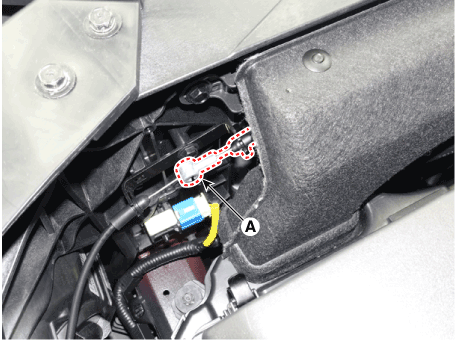

Separate the hood latch connector (A) and loosen the mounting clips.

Hyundai Venue. Hood Latch. Repair procedures
3.

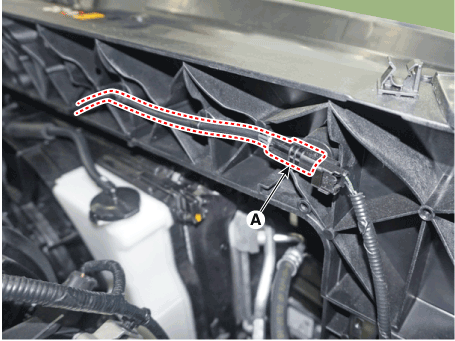

Separate the hood latch cable (A).

Hyundai Venue. Hood Latch. Repair procedures
4.

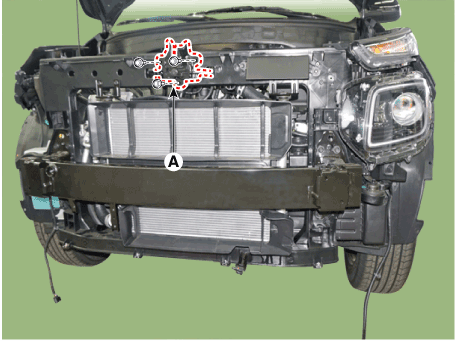

Loosen the mounting nuts and remove the hood latch assembly (A).

Hyundai Venue. Hood Latch. Repair procedures
5.
To install, reverse removal procedure.
Hyundai Venue. Hood Latch. Repair procedures
•
Make sure the hood latch release cable is connected properly.
•
Make sure the hood locks/unlocks and opens/closes properly.
•
Adjust the latch alignment.
•
Replace any damaged clips (or retainers or fasteners)

    Hood Latch. Components and components location

    ..
