Hyundai Venue: General Service Information / General information

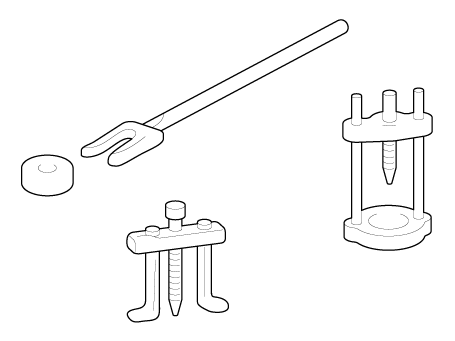

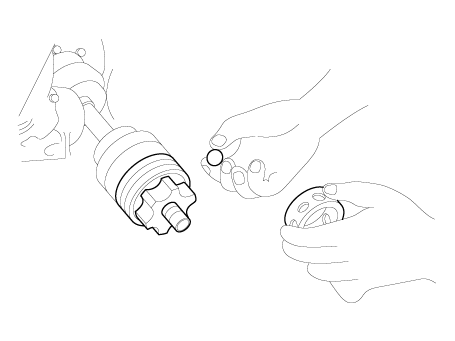

Inspection of parts

Each part, when removed, should be carefully inspected for malfunction, deformation, damage, and other problems.

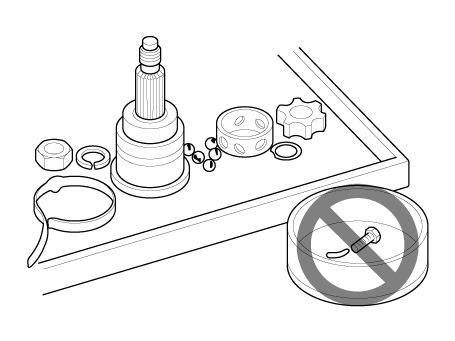

Arrangement of parts

All disassembled parts should be carefully arranged for effective reassembly.

Be sure to separate and distinguish the parts to be replaced from those that will be used again.

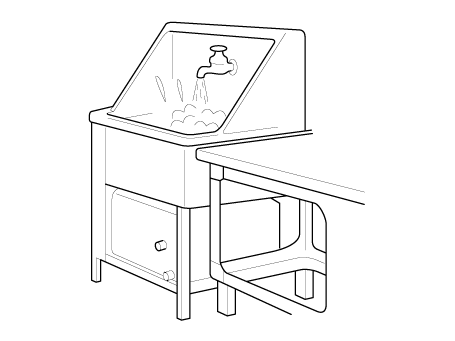

Cleaning parts for reuse

All parts to be used again should be carefully and thoroughly cleaned in an appropriate method.

Oil seals

Gaskets

O-rings

Lock washers

Cotter pins (split pins)

Plastic nuts

Depending on their location.

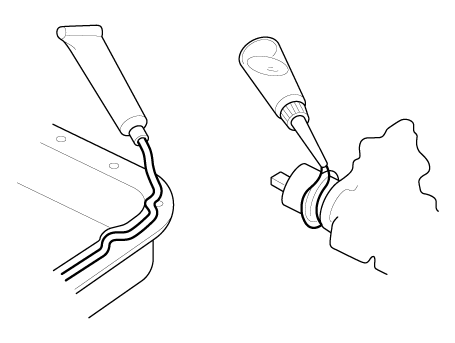

Sealant should be applied to gaskets.

Oil should be applied to the moving components of parts.

Specified oil or grease should be applied to the prescribed locations (oil seals, etc.) before assembly.

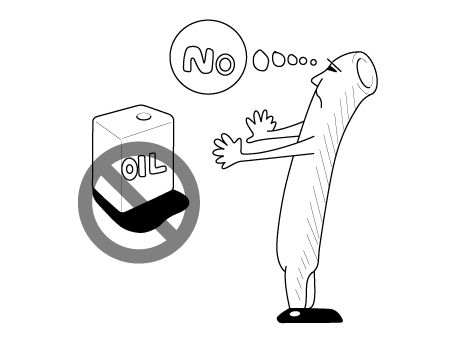

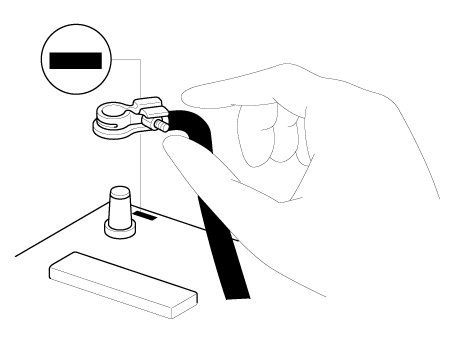

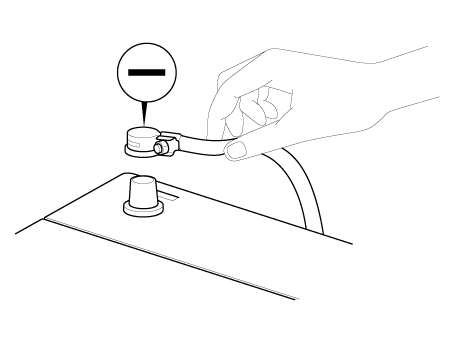

Be sure to disconnect the battery cable from the negative (-) terminal of the battery.

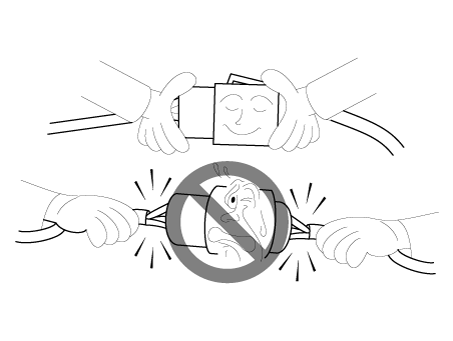

Never pull on the wires when disconnecting connectors.

Locking connectors will click when the connector is secure.

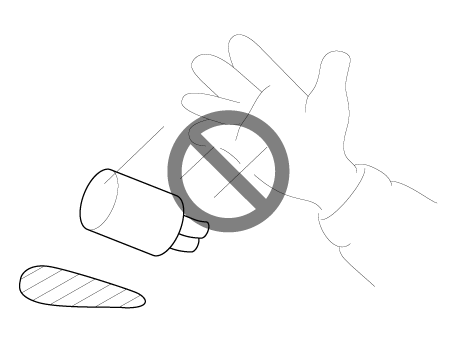

Handle sensors and relays carefully. Be careful not to drop them against other parts.

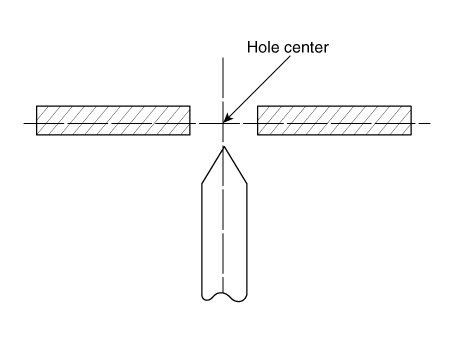

Basically, all measurements in this manual are taken with a tracking gauge.

When a measuring tape is used, check to be sure there is no elongation, twisting or bending.

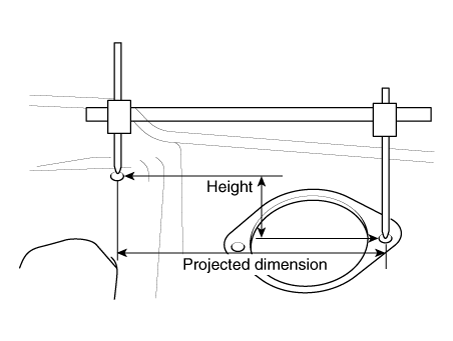

For measuring dimensions, both projected dimensions and actual - measurement dimensions are used in this manual.

The dimensions are measured by projecting the measurement points on the vehicle surface onto the reference dimensions.

If the length of the tracking gauge proves is adjustable, measure the dimensions by lengthening one of the two probes to the height difference between the two measuring surfaces.

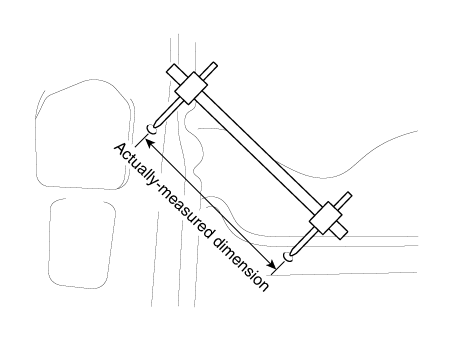

These dimensions indicate the actual linear distance between measurement points, and are used as the reference dimensions when a tracking gauge is used for measurement.

First adjust both probes to the same length (A=A') before measurement.

Check the terminal for tightness.

Check terminals and wires for corrosion from battery electrolyte, etc.

Check terminals and wires for open circuits.

Check wire insulation and coating for damage, cracks and degrading.

Check whether the conductive parts of terminals contact other metallic parts (vehicle body and other parts).

Check whether there is complete continuity between the attaching bolt(s) of the grounded parts and the vehicle’s body.

Check for incorrect wiring.

Check the wiring is clamped to prevent contact with sharp corners of the vehicle body, or hot parts (exhaust manifold, pipe, etc.)

Check that the wiring is clamped firmly to provide enough clearance from the fan pulley, fan belt and other rotating or moving parts.

Check that the wiring has a little space so that it can vibrate between the fixed (the vehicle body) and moving parts (wirings, engine, etc.)

Prior to servicing the electrical system, make sure to turn off the ignition switch and disconnect the battery ground cable.

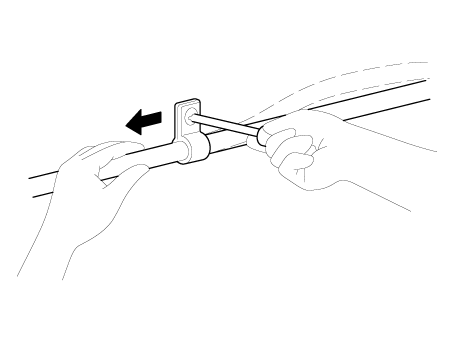

Fix the wiring harnesses with clamps so that there is no slack wiring. However, for any harness which passes the engine or other vibrating parts of the vehicle, allow some slack within a range that does not allow the engine vibrations to cause the harness to come into contact with any of the surrounding parts and then secure the harness by using a clamp.

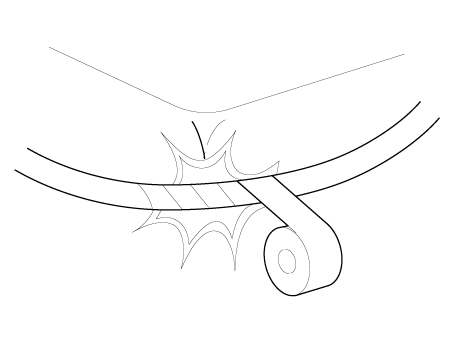

If any section of a wiring harness interferes with the edge of a part, or a corner, wrap the section of the harness with tape or something similar in order to protect it from damage.

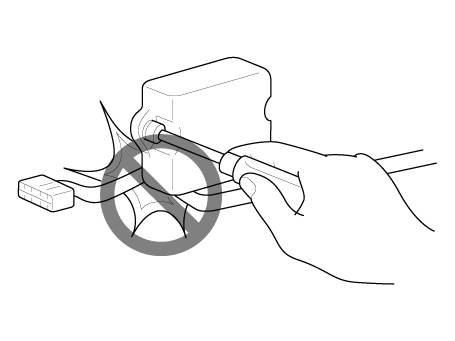

When installing any parts, be careful not to pinch or damage any of the wiring harness.

Never throw relays, sensors or electrical parts, or expose them to strong shock.

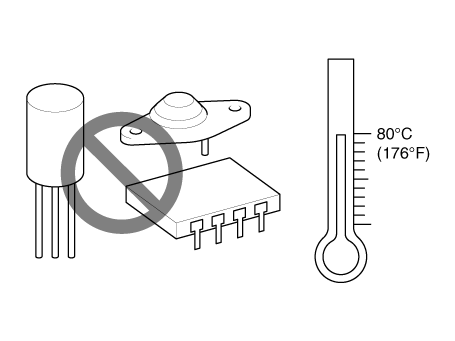

The electronic parts used in the computer, relays, etc. are easily damaged by heat. If there is a need for service operations that may cause the temperature to exceed 80°C (176°F), remove the electronic parts beforehand.

Loose connectors may cause malfunction. Make sure that the connectors are always securely fastened.

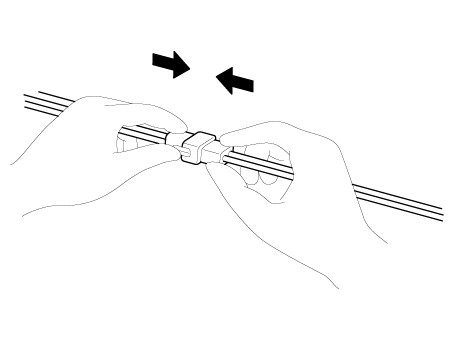

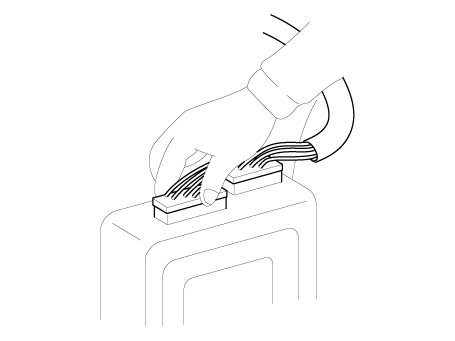

When disconnecting a connector, be sure to grip only the connector, not the wires.

Disconnect connectors which have catches by pressing in the direction of the arrows shown in the illustration.

Connect connectors which have catches by inserting the connectors until they make a clicking sound.

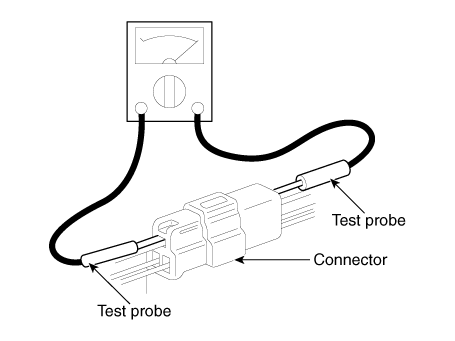

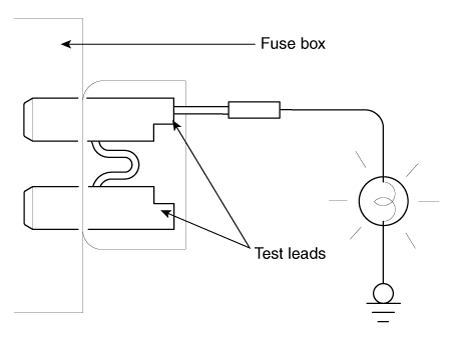

When using a circuit tester to check continuity or voltage on connector terminals, insert the test probe into the harness side. If the connector is a sealed connector, insert the test probe through the hole in the rubber cap until the probe contacts the terminal, being careful not to damage the insulation of the wires.

To avoid overloading the wiring, take into consideration the electrical current load of the optional equipment when determining the appropriate wire size.

Use only unleaded gasoline.

Do not run the engine while the car is at rest for a long time. Avoid running the engine at fast idle for more than 10minutes and at idle speed for more than 20 minutes.

Do not measure engine compression for an extended time. Engine compression tests must be made as rapidly as possible. Remove the fuel pump relay before performing a compression test.

Do not dispose of used catalytic converter together with parts contaminated with gasoline or oil.
