Lift and Support Points
Hyundai Venue. General information
•
When heavy rear components such as suspension, fuel tank, spare tire, tailgate and trunk lid are to be removed, place additional weight in the luggage area before hoisting. When substantial weight is removed from the rear of the vehicle, the center of gravity may change and can cause the vehicle to tip forward on the hoist.
Hyundai Venue. General information
•
With each tire/wheel assembly weighing approximately 30lbs (14kg), placing the front wheels in the luggage area can help the weight distribution.
•
Use the same support points to support the vehicle on safety stands.
1.

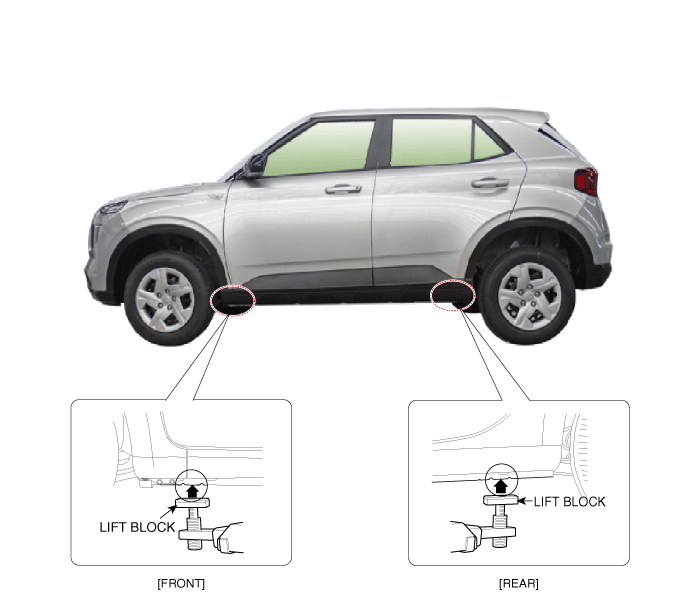

Place the lift blocks under the support points as shown in the illustration.
2.
Raise the hoist a few inches (centimeters) and rock the vehicle to make sure that the vehicle is firmly supported.
3.
Raise the hoist to full height to check whether the vehicle is firmly supported.

Hyundai Venue. General information

    Lift and Support Points

    ..
