Hyundai Venue: Fuel Delivery System / Fuel Pump Motor. Repair procedures

Hyundai Venue (QX) (2020-2025) Service Manual / Engine Control / Fuel System / Fuel Delivery System / Fuel Pump Motor. Repair procedures

Removal
1.
Remove the fuel pump.
(Refer to Fuel Delivery System - "Fuel Pump")
2.

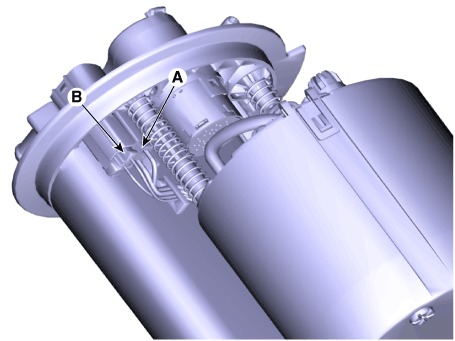

Disconnect the electric pump wiring connector (A) and the fuel sender connector (B).

Hyundai Venue. Fuel Pump Motor. Repair procedures

3.

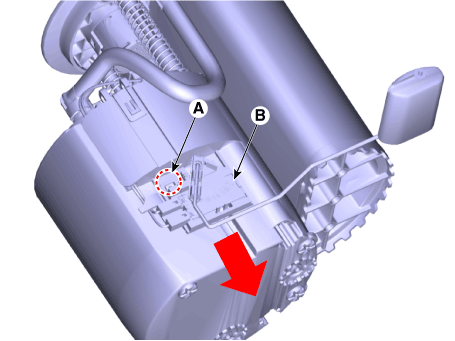

Press the fixing hook (A) with a driver and then remove fuel sender (B) in the arrow direction.

Hyundai Venue. Fuel Pump Motor. Repair procedures

4.

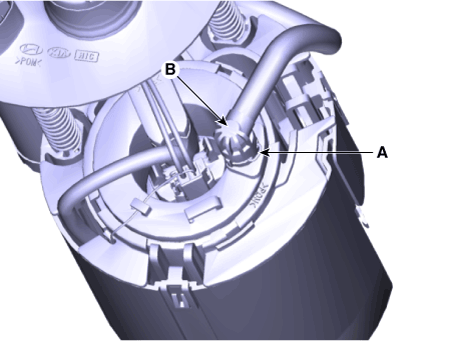

Remove the fuel feed tube quick-connector (B) after releasing the fixing clip (A).

Hyundai Venue. Fuel Pump Motor. Repair procedures

5.

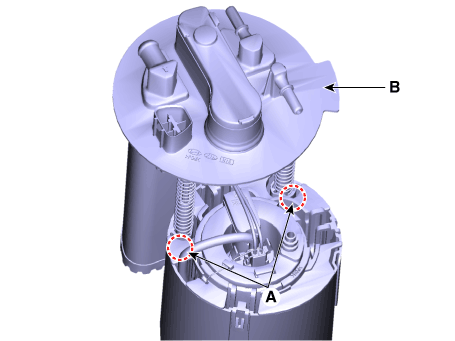

Remove the head assembly (B) after releasing the fixing hooks (A).

Hyundai Venue. Fuel Pump Motor. Repair procedures

6.

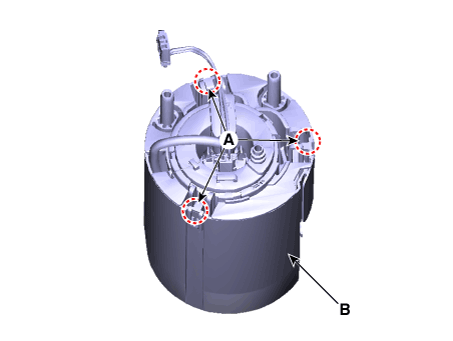

Remove the reservoir-cup (B) after releasing the fixing hooks (A).

Hyundai Venue. Fuel Pump Motor. Repair procedures

7.

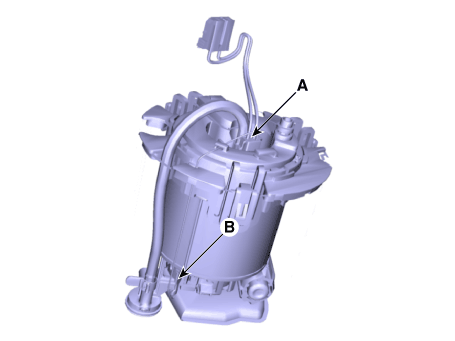

Disconnect the fuel pump motor connector (A).
8.
Disconnect the ground cable (B).

Hyundai Venue. Fuel Pump Motor. Repair procedures

9.

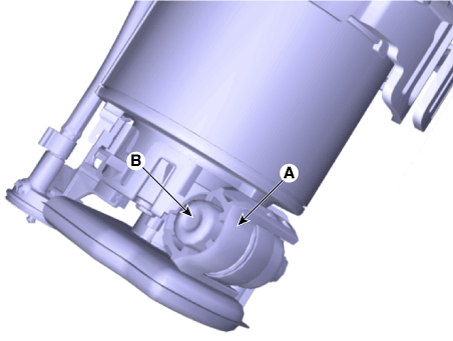

Release the fixing hooks (A) and then remove fuel pressure regulator (B).

Hyundai Venue. Fuel Pump Motor. Repair procedures

10.
Release the fixing hooks (A) and then remove pre-filter (B).

Hyundai Venue. Fuel Pump Motor. Repair procedures

11.

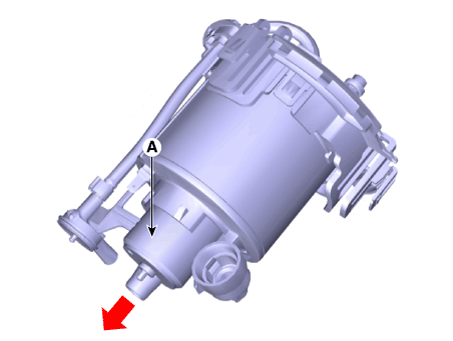

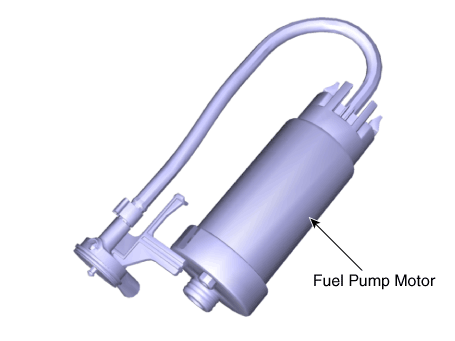

Remove the fuel pump motor (A) in the direvtion ofan arrow.

Hyundai Venue. Fuel Pump Motor. Repair procedures

Hyundai Venue. Fuel Pump Motor. Repair procedures

Installation
1.
Installation is reverse of removal.
