Hyundai Venue: Cylinder Block / Drive Plate. Components and components location

Components and components location

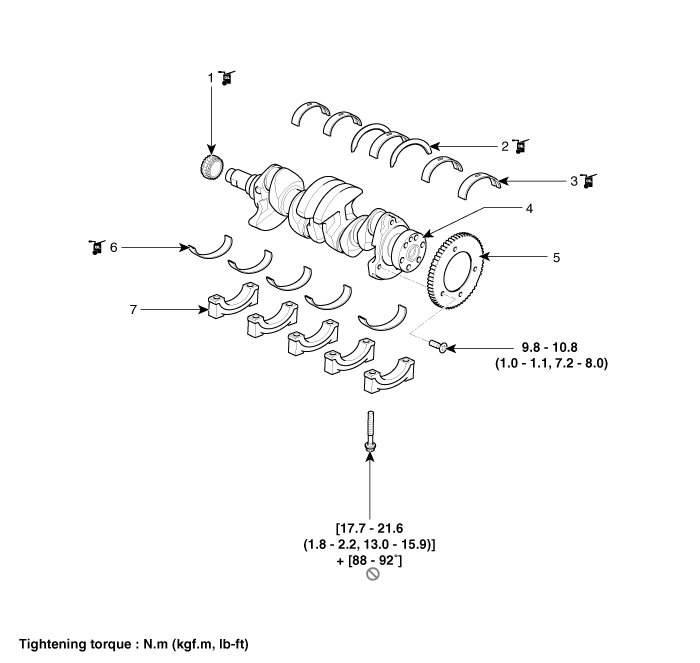

Components 1. Cylinder block 2. Ladder frame 3. Crankshaft 4. Crankshaft upper bearing 5. Crankshaft lower bearing 6...

Drive Plate. Repair procedures

Removal and Installation 1. Remove the automatic transaxle. (Refer to Automatic Transaxle System - "Automatic Transaxle") 2...

Other information:

Hyundai Venue (QX) (2020-2024) Service Manual: Transaxle Control Module (TCM). Schematic diagrams

TCM Connector Connector [A] Pin Description 2 35R clutch control solenoid valve (35R/C_VFS) 4 26 brake control solenoid valve (26/B_VFS) 5 Underdrive brake control solenoid valve (UD/B_VFS) 8 Inhibitor switch signal S2 (R) 19 Line pressure control solenoid valve (LINE_VFS) 21 Input speed sensor power 22 Output speed sensor power 32 Torque converter control solenoid valve (T/CON_VFS) 33 VB (Battery voltage) 34 Solenoid supply power 2 37 Output speed sensor signal 38 Inhibitor switch signal S4 (D) 39 Inhibitor switch signal S1 (P) 40 Manual mode up shift 42 Manual mode select switch 43 Oil temperature sensor (+) 45 VB (Battery voltage) 46 ON/OFF solenoid valve A(SS-A) 47 Overdrive clutch control solenoid valve (OD/C_VFS) 48 VB (Battery voltage) 49 Solenoid supply power 1 52 Input speed sensor signal 54 Inhibitor switch signal S3 (N) 57 Manual mode down shift 58 Oil temperature sensor (-) TCM Terminal input/ output signal Connector [A] Pin Description Condition Input/output value Type Level 2 35R clutch control solenoid valve (35R/C_VFS) - Output 0V/Battery voltage level 9V < Battery voltage level < 16V 4 26 brake control solenoid valve (26/B_VFS) - Output 0V/Battery voltage level 9V < Battery voltage level < 16V 5 Underdrive brake control solenoid valve (UD/B_VFS) - Output 0V/Battery voltage level 9V < Battery voltage level < 16V 8 Inhibitor switch signal S2 (R) High Input 0V/Battery voltage level Low 9V < Battery voltage level < 16V 19 Line pressure control solenoid valve (LINE_VFS) - Output 0V/Battery voltage level 9V < Battery voltage level < 16V 21 Input speed sensor power ON Power 0V/9V OFF 22 Output speed sensor power ON Power 0V/9V OFF 32 Torque converter control solenoid valve (T/CON_VFS) - Output 0V/Battery voltage level 9V < Battery voltage level < 16V 34 Solenoid power 2 Power 0V/Battery voltage level 9V < Battery voltage level < 16V 37 Output speed sensor signal High Input 0...
