Hyundai Venue: Alternator / Description and operation
Hyundai Venue (QX) (2020-2025) Service Manual / Engine Electrical System / Charging System / Alternator / Description and operation
| Description |
The Alternator has eight built-in diodes, each rectifying AC current to DC current.
Therefore, DC current appears at alternator "B" terminal.
In addition, the charging voltage of this alternator is regulated by the battery
voltage detection system.
The alternator is regulated by the battery voltage detection system.
The main components of the alternator are the rotor, stator, rectifier, capacitor
brushes, bearings and V-ribbed belt pulley.
The brush holder contains a built-in electronic voltage regulator.

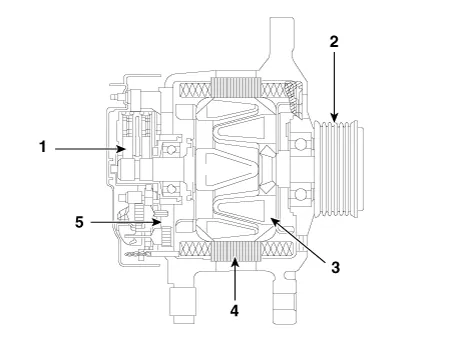

| 1. Brush 2. OAP 3. Rotor 4. Stator 5. Rectifier |
Alternator
..
Specifications
Specification
Alternator
Item
Specification
Rated voltage
13.5V, 120A
Speed in use
1,000 - 18,000 rpm
Voltage regulator
IC Regulator built-in type
Regulator Setting Voltage
External mode
Refer to below graph
Internal mode
14...
