Hyundai Venue: Floor Console / Console Armrest. Repair procedures

Hyundai Venue (QX) (2020-2025) Service Manual / Body (Interior and Exterior) / Floor Console / Console Armrest. Repair procedures

Replacement
Hyundai Venue. Console Armrest. Repair procedures
Put on gloves to prevent hand injuries.
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Take care not to bend or scratch the trim and panels.
1.
Remove the floor console assembly.
(Refer to Floor Console - "Floor Console Assembly")
2.
Remove the rear console cover.
(Refer to Floor Console - "Rear Console Cover")
3.

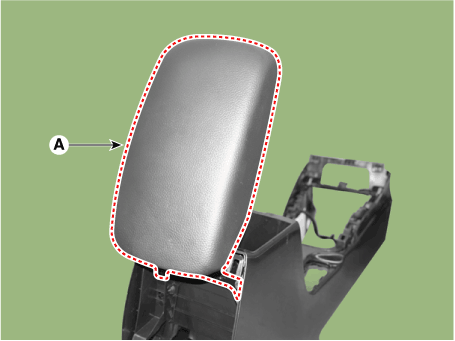

Loosen the mounting screws and remove the console armrest (A).

Hyundai Venue. Console Armrest. Repair procedures

4.
To install, reverse removal procedure.
