Components
[Rear Drum Brake Type]

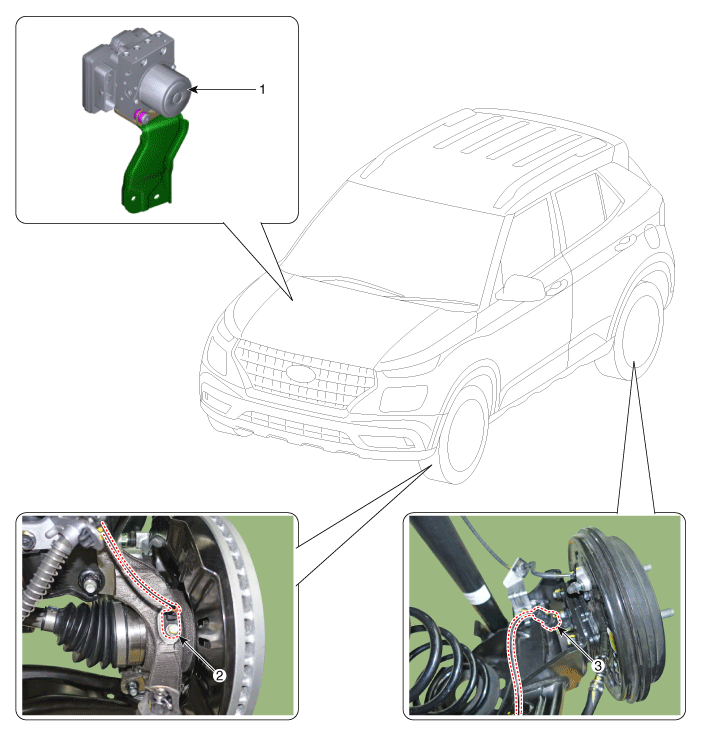

Hyundai Venue. Components and components location

1. ABS control module
2. Front wheel speed sensor
 3. Rear wheel speed sensor

[Rear Disc Brake Type]

Hyundai Venue. Components and components location

1. ABS Control module
2. Front wheel speed sensor
 3. Rear wheel speed sensor

    Description This specification applies to HCU(Hydraulic Control Unit) and ECU(Electronic Control Unit) of the HECU.(Hydraulic and Electronic Control Unit) This specification is for the wiring design and installation of ABS/ESP ECU.
