| Components Location(1) |
| 1. Automatic transaxle assembly 2. ATF cooler tube 3. Ground line 4. Shift cable mounting bracket 5. Shift cable 6. Inhibitor switch & manual control lever |
7. Mounting bracket cover 8. Support bracket mounting bolt 9. Automatic transaxle mounting bracket 10. ATF cooler hose 11. ATF cooler & radiator |
| Components Location(2) |

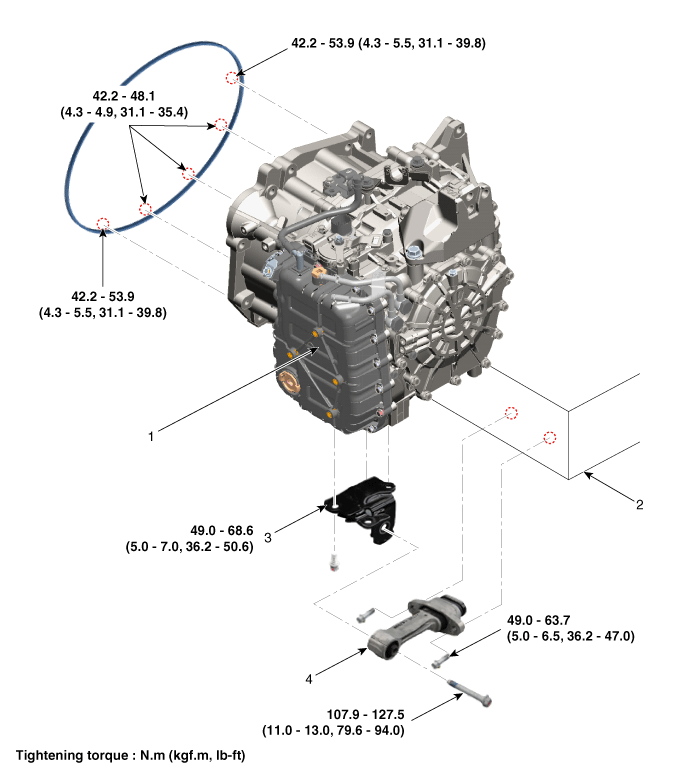

| 1. Automatic transaxle assembly 2. Subframe assembly |
3. Roll rod support bracket 4. Roll rod bracket |
Repair procedures
Removal
1.
Turn OFF ignition switch and disconnect the negative (-) battery cable.
2.
Remove the air cleaner and air duct...
