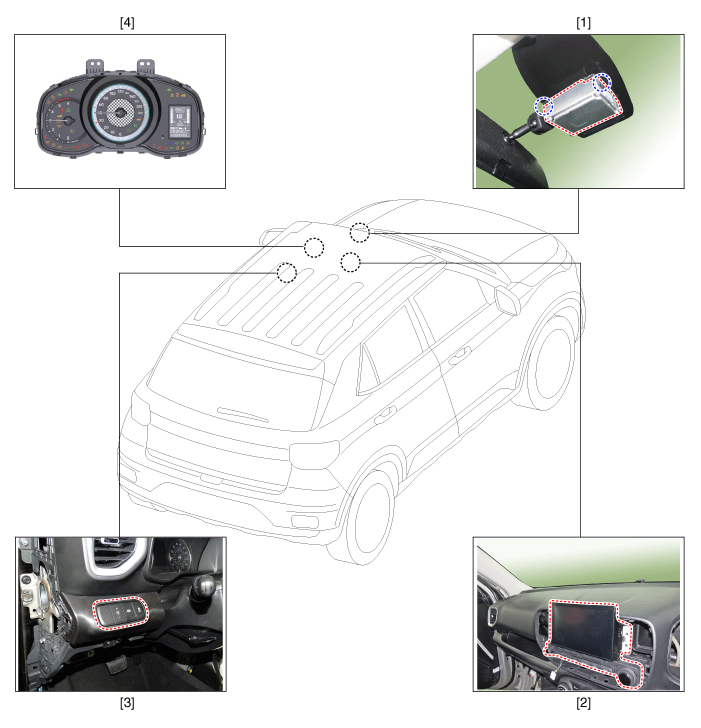

Components Location

Hyundai Venue. Components and components location

1. Front view camera unit
2. AVN head unit

3. LKA ON/OFF switch
4. Cluster

Front View Camera System

Description and operation

Description and Operation Blcok Diagram • This system monitors the driving situations through the radar and the camera...
